Power Mirror Replacement

NOTE: Take care not to scratch the door.
  1. Remove the front door sash inner trim (see FRONT DOOR SASH INNER TRIM REPLACEMENT ).
  2. Disconnect the power mirror connector (A).

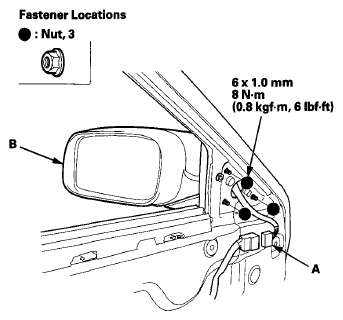

    Fig 1: Power Mirror And Power Mirror Connector With Torque Specifications
    G08070532Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. While holding the power mirror (B), remove the nuts securing the mirror.
  4. Release the catch (A) from the hole in the door, then remove the power mirror (B).

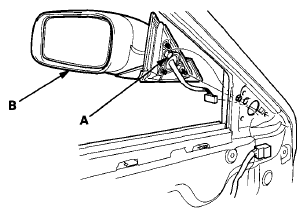

    Fig 2: Identifying Catch And Power Mirror
    G08070533Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Install the mirror in the reverse order of removal, and note these items:
    • Make sure the connector is plugged in properly.
    • Make sure the power mirror operate properly.
