Repair and Diagnosis
>>
Body & Frame
>>
Ignition Switch/Steering Lock
>>
Circuit Diagram - Without Keyless Access System
Circuit Diagram - Without Keyless Access System

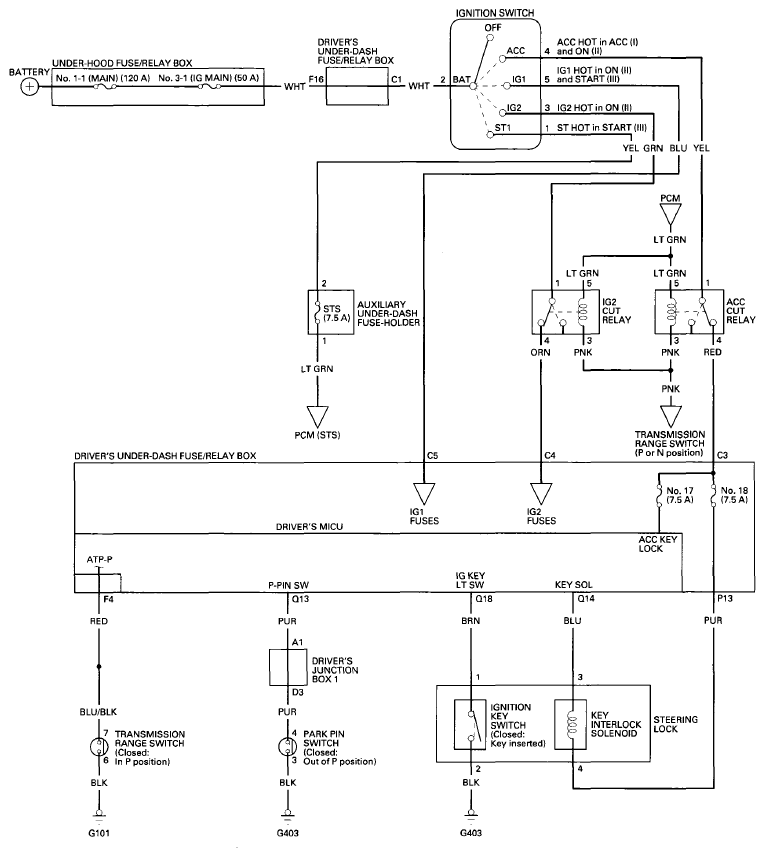

Fig 1: Ignition Switch Circuit Diagram (w/o Keyless Access System)
