Audio-Navigation Unit Connector D (36P)

NOTE: Refer to the navigation system information for the terminals inputs and outputs not shown (see AUDIO-NAVIGATION UNIT CONNECTOR D (36P) ).

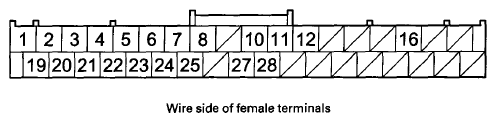

Fig 1: Audio-Navigation Unit Connector D (36P) Connector End View

Courtesy of AMERICAN HONDA MOTOR CO., INC.

AUDIO-NAVIGATION UNIT CONNECTOR D (36P)

Cavity	Wire Color	Terminal Name	Connects to
D1	YEL	DUET RX	Audio-navigation switch panel
D2	GRY(1)	DUET SH	Shield for terminals No. 1 and No. 19
D3	PUR	OPERA RX	Audio-navigation switch panel
D4	GRY(1)	OPERA SH	Shield for terminals No. 3 and No. 21
D5	BLU	VOL-	Audio-navigation switch panel
D6	GRY(1)	VOL SH	Shield for terminals No. 5, No. 23, and No. 24
D7	RED	ELS DATA-	Stereo amplifier
D8	GRN	ELS DATA-I-	Stereo amplifier
D12	PNK	B-CAN H	B-CAN communication bus
D19	BRN	DUET TX	Audio-navigation switch panel
D20	BLU	DUET CONT	Audio-navigation switch panel
D21	LT BLU	OPERA TX	Audio-navigation switch panel
D22	PNK	OPERA CONT	Audio-navigation switch panel
D23	PNK	VOL+	Audio-navigation switch panel
D24	GRN	PWR SW	Audio-navigation switch panel
D25	GRY(1)	ELS DATA SH	Shield for terminals No. 7 and No. 8
D28	BLU	B-CAN L	B-CAN communication bus
(1) The shielded wires have a heat-shrink tube insulating the outside of the wire. The color of the insulating tube, typically black or dark gray, may not match the color of the wire listed on the circuit diagram.
