PCM A/T Control System Electrical Connections

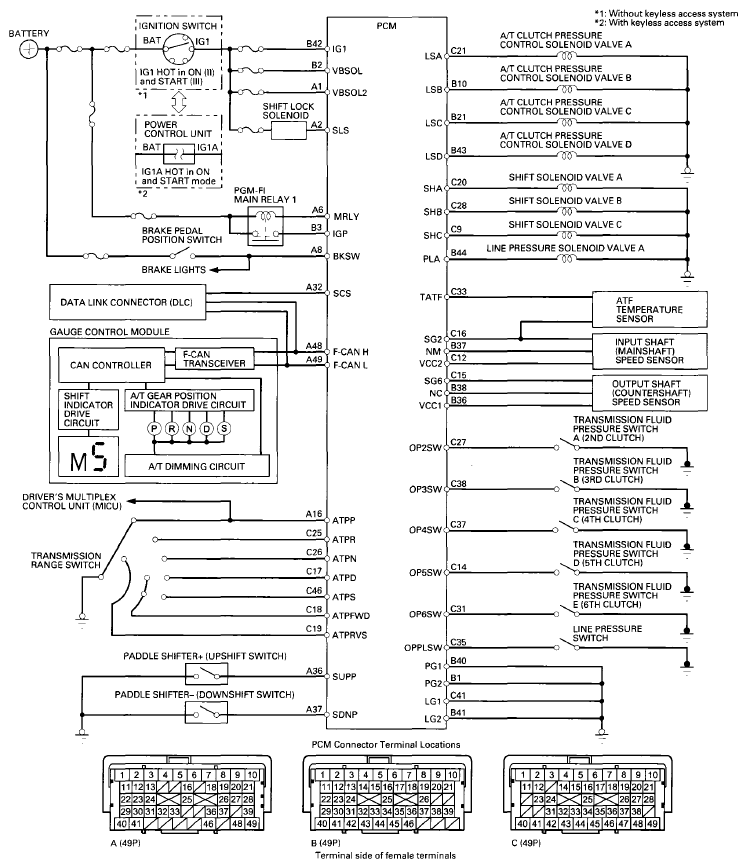

Fig 1: PCM A/T Control System Electrical Connections Diagram

G08066314

Courtesy of AMERICAN HONDA MOTOR CO., INC.
