DTC P2227: Barometric Pressure (BARO) Sensor Circuit Range/Performance Problem: Notes

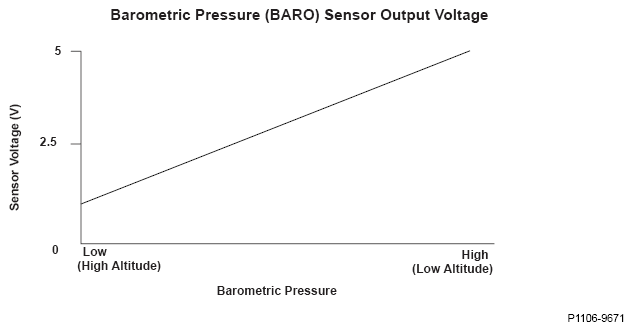

Fig 1: Barometric Pressure Sensor Output Voltage Graph

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Barometric Pressure Sensor Output Voltage Characteristics Curve

Courtesy of AMERICAN HONDA MOTOR CO., INC.
