Component Location Index

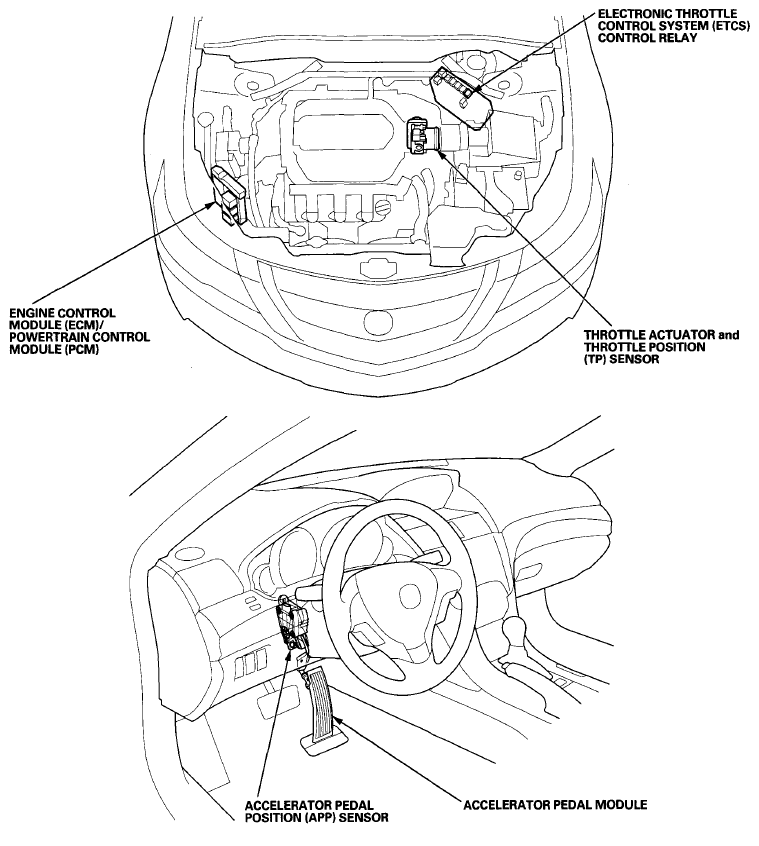

Fig 1: Electronic Throttle Control System Components Location

G08069600

Courtesy of AMERICAN HONDA MOTOR CO., INC.
