Sub Display

This diagnosis tests the internal connection between the audio-navigation switch panel and the audio-HVAC subdisplay. If Connection is NG, check the serial bus line between the audio-navigation switch panel and the audio-navigation unit.

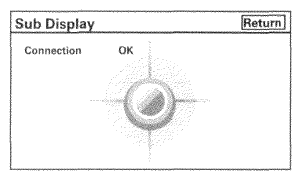

Fig 1: Display - Sub Display Screen

Courtesy of AMERICAN HONDA MOTOR CO., INC.
