Vehicle Speed Pulse

The vehicle speed pulse is sent by the ECM/PCM. The ECM/PCM receives a signal from the output shaft (countershaft) speed sensor, then processes the signal and transmits it to the speedometer and other systems.

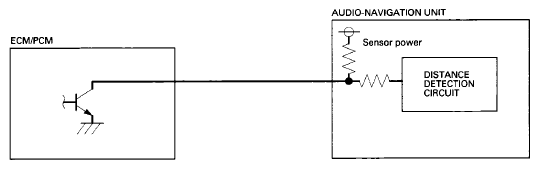

Fig 1: Vehicle Speed Pulse Communication Diagram

Courtesy of AMERICAN HONDA MOTOR CO., INC.
