Navigation Display Unit Removal/Installation

NOTE:
  • Put on gloves to protect your hands.
  • Take care not to scratch the dashboard and related parts.
  • Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.
  • When prying components, use the handy remover set or equivalent.
  1. Remove the dashboard center vent (see DASHBOARD CENTER VENT REMOVAL/INSTALLATION ).
  2. Remove the screws and bolt (A) from the navigation display unit (B).

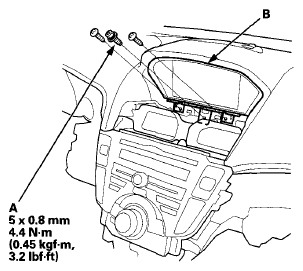

    Fig 1: Navigation Display Unit And Bolt With Torque Specifications
    G08071858Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Pull out the navigation display unit. Then disconnect the connector (A) from the navigation display unit.
    Fig 2: Identifying Navigation Display Unit & Connector
    G08071859Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the navigation display unit in the reverse order of removal.
