Engine Block Assembly Component Location Index

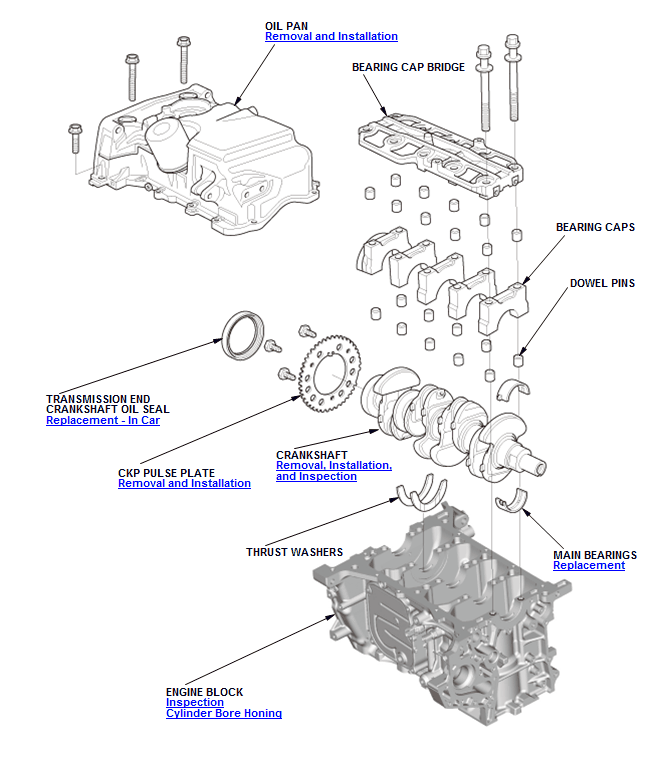

GHH99510

Courtesy of HONDA, U.S.A., INC.

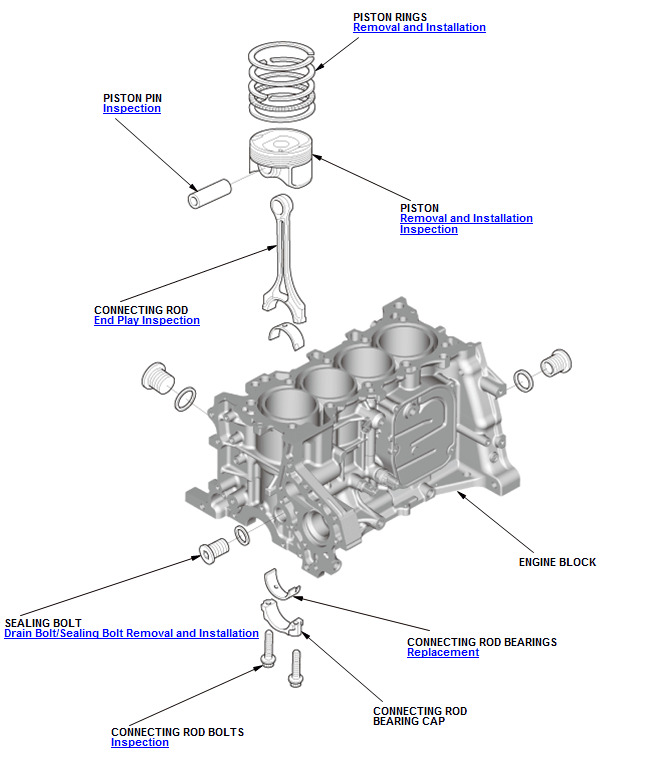

GHH99511

Courtesy of HONDA, U.S.A., INC.
