Automatic Transmission
>>
A/T Gear Position Indicator
>>
Circuit Diagram
Circuit Diagram

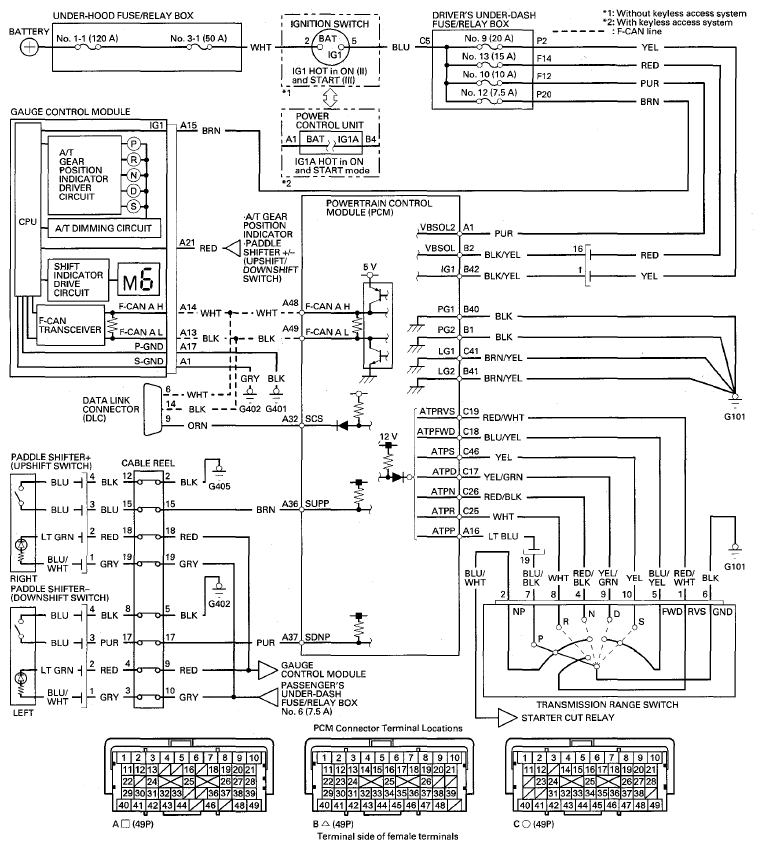

Fig 1: A/T Gear Position Indicator Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
