A/T Gear Position Indicator Replacement

NOTE: The A/T gear position indicator, the park pin switch, and the shift lock solenoid harness are not available separately. Replace the A/T gear position indicator, the park pin switch, and the shift lock solenoid harness as a set.
  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).
  2. Remove the shift lock solenoid, and disconnect the shift lock solenoid connector (see SHIFT LOCK SOLENOID REPLACEMENT  ).
  3. Remove the harness wire ties (A).

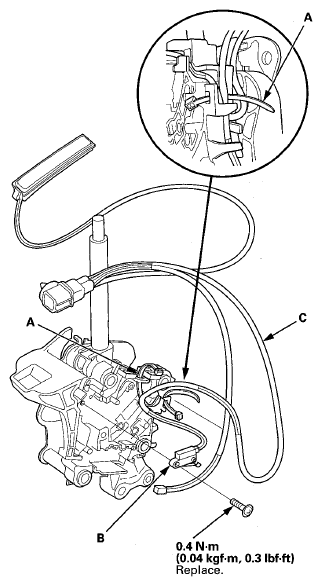

    Fig 1: Locating Harness Wire Ties, Park Pin Switch And Replace A/T Gear Position Indicator/Park Pin Switch/Shift Lock Solenoid Harness Assembly With Torque Specifications
    G08074816Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the park pin switch (B), and replace the A/T gear position indicator/park pin switch/shift lock solenoid harness assembly (C).
  5. Connect the shift lock solenoid connector, and install the shift lock solenoid in the shift lever (see SHIFT LOCK SOLENOID REPLACEMENT  ).
  6. Route the harnesses as shown in illustration. Take the slack out of the harnesses, and secure the harnesses with the harness wire ties (A).

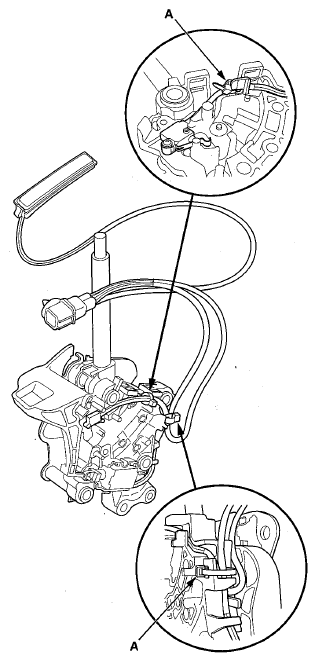

    Fig 2: Locating Harness Wire Ties
    G08074817Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
