Component Location Index

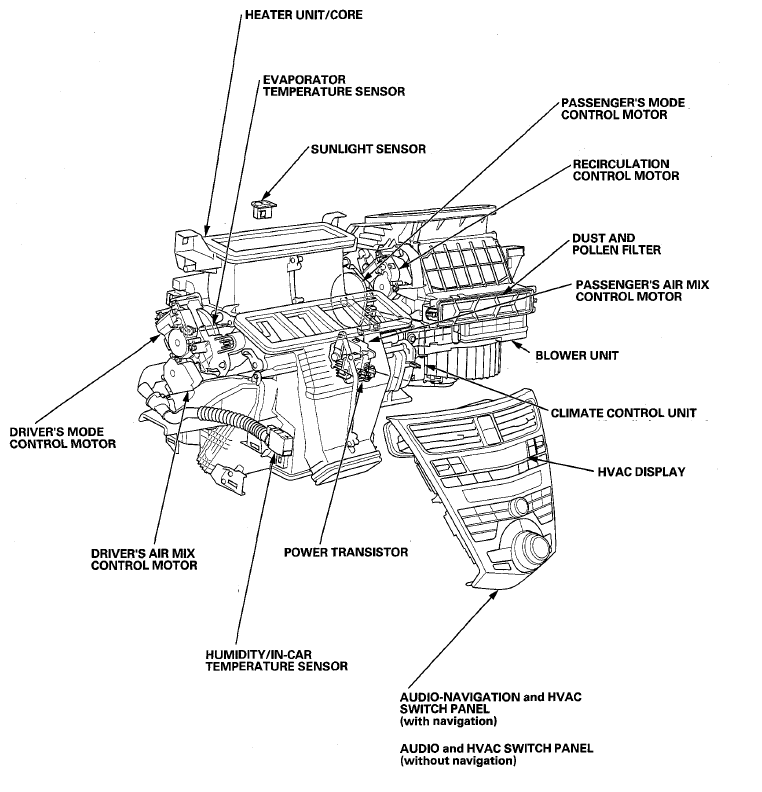

Fig 1: Identifying Climate Control Components Location (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

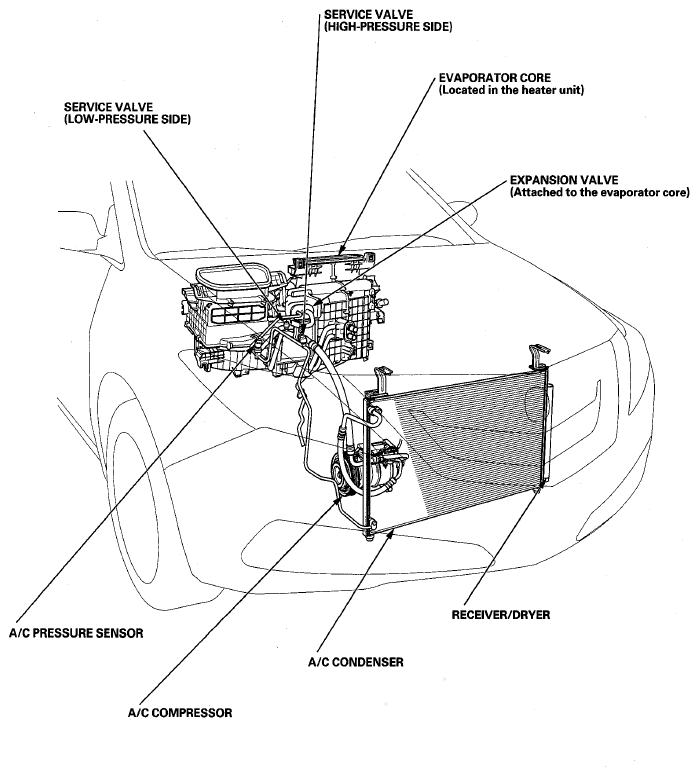

Fig 2: Identifying Climate Control Components Location (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

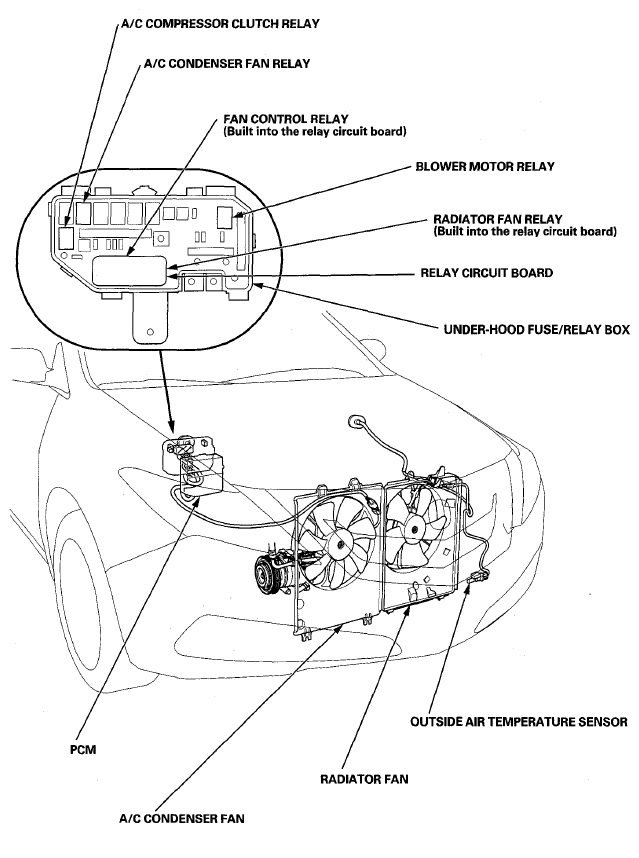

Fig 3: Identifying Climate Control Components Location (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
