Home
>>
Acura
>>
2012
>>
ZDX
>>
Repair and Diagnosis
>>
Heating, Ventilation & A/C (HVAC)
>>
HVAC Control Systems
>>
Climate Control
>>
A/C Line Replacement
A/C Line Replacement

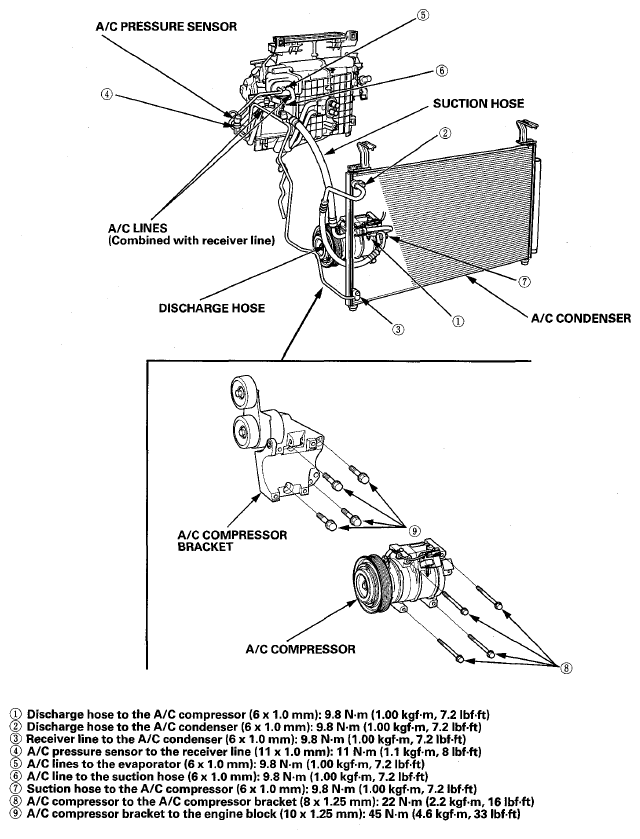

Fig 1: A/C Line Replacement Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
