Rear Engine Mount Removal and Installation: Installation

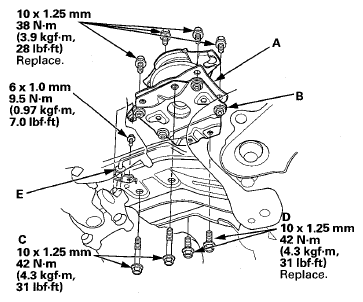

- Install the rear engine mount (A) to the rear engine mount base (B).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
- Align the rear engine mount base with its mounting holes and tighten the rear engine mount base mounting bolts (C) and new mounting bolts (D), then install the power steering line bracket (E).
- Remove the jack and the wood block.
- Install the rear warm upTWC (see
REAR WU-TWC (BANK 1)
).
- Lower the vehicle on the lift.

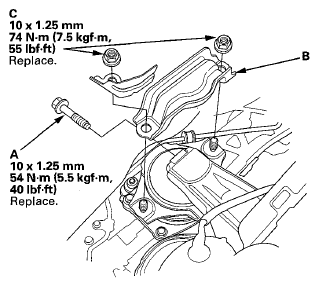

- Tighten the new rear engine mount bolt (A), then install the rear engine mount stop (B) using new nuts (C).
Courtesy of AMERICAN HONDA MOTOR CO., INC.
