Console Armrest Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program; call 888-424-6857

1. Remove the center console (see CENTER CONSOLE REMOVAL/INSTALLATION  ).
2. Remove both console panels (see step  2 under ).
3. Release the hook (A) to separate the console armrest damper holder (B) from the console armrest hinge (C).
   Fig 1: Identifying Console Armrest Damper Holder, Console Armrest Hinge And Hook

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the bolts, then remove the armrest rubber stoppers (A).
   Fig 2: Armrest Rubber Stoppers And Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

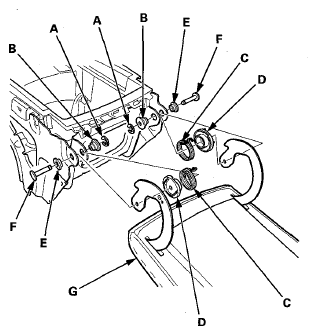

5. Release the E-clips (A), the inner bushings (B), the armrest springs (C), the armrest spring housings (D), the outer bushings (E), and the armrest hinge pins (F) from the console armrest (G).
   Fig 3: Identifying Armrest Spring Housings, Outer Bushings, Armrest Hinge Pins And E-Clips

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Install the armrest in the reverse order of removal, and note these items:
   • If the clips are damaged or stress-whitened, replace them with new ones.
   • Push the clips into place securely.
