Relay And Control Unit Locations
>>
Rear and Roof
Rear and Roof

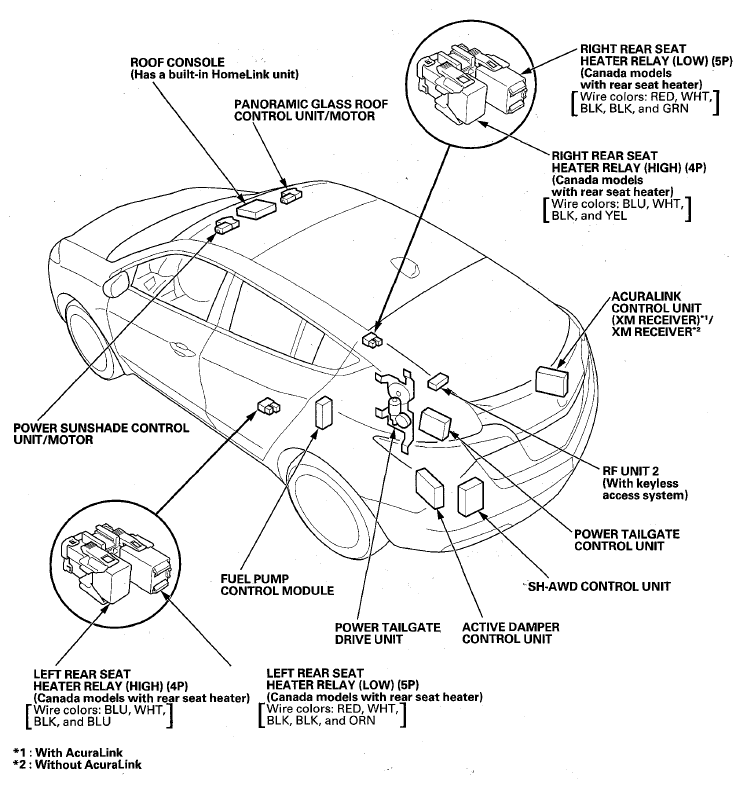

Fig 1: Identifying Relay And Control Unit Locations - Rear And Roof
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
