XM Receiver (With XM Radio) Connector End View
XM Receiver (With XM Radio) Connector End View

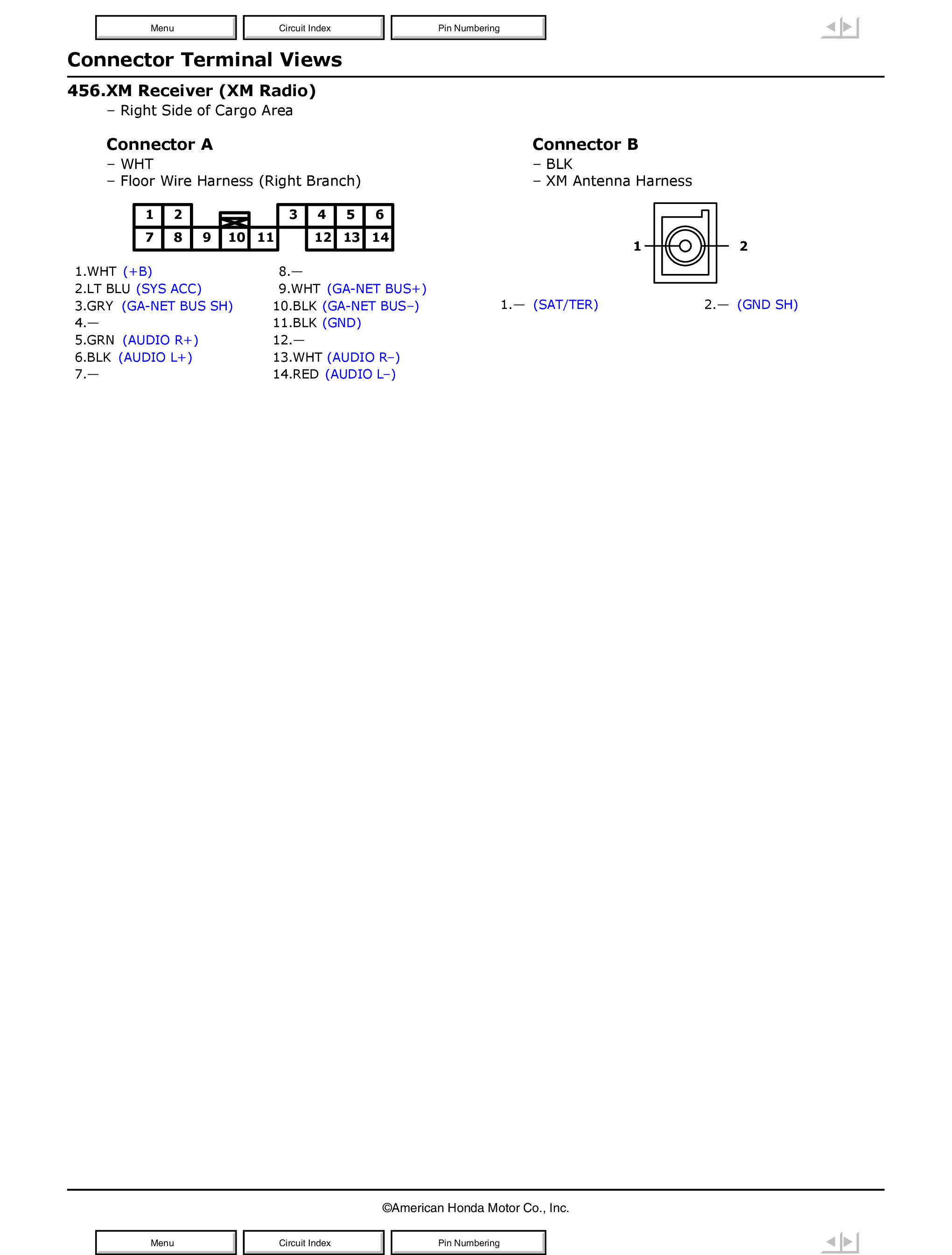

Fig 1: XM Receiver (With XM Radio) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
