Tailgate Light Connector End View
Tailgate Light Connector End View

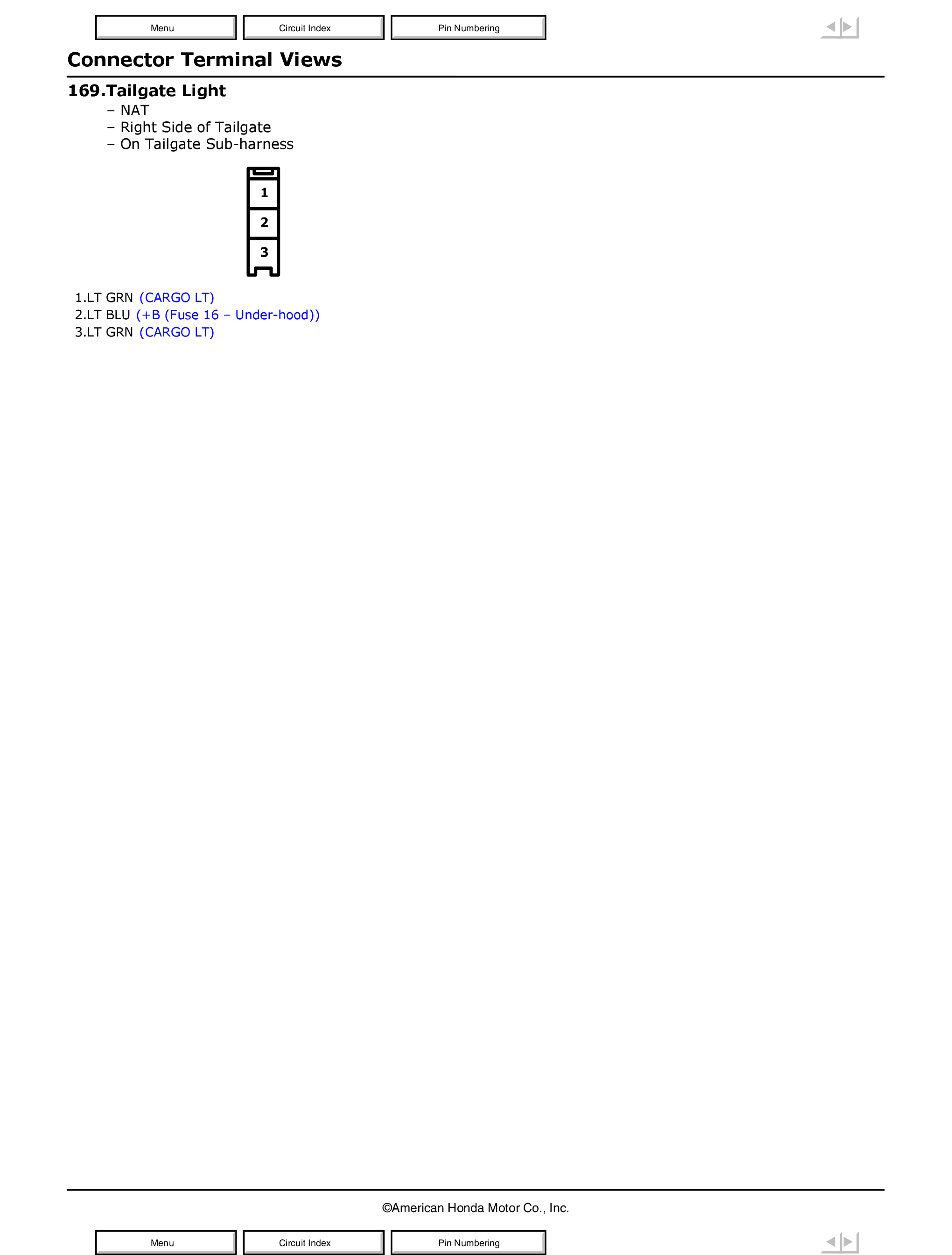

Fig 1: Tailgate Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

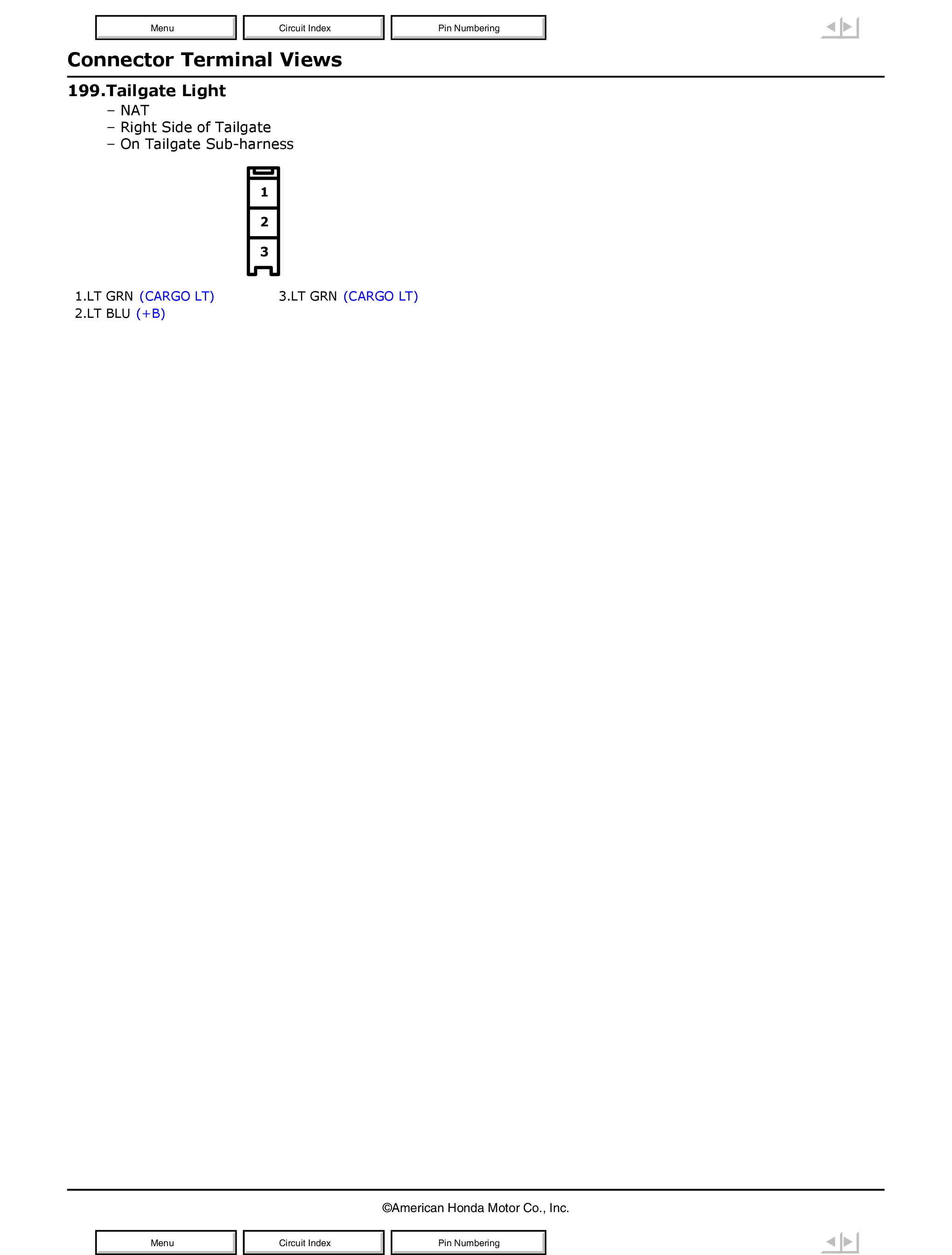

Fig 1: Tailgate Light Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
