Right BSI Radar Unit Connector End View
Right BSI Radar Unit Connector End View

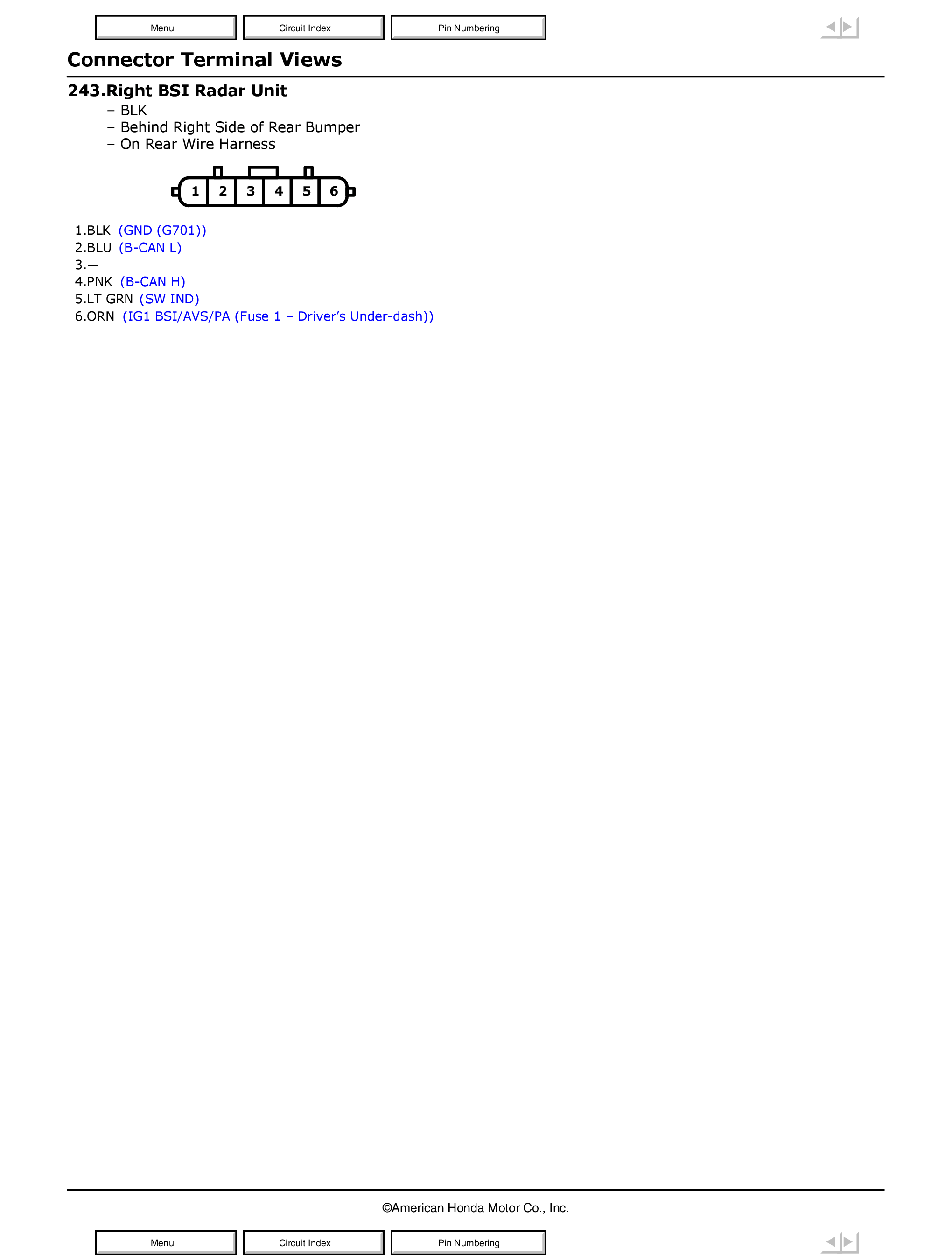

Fig 1: Right BSI Radar Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
