Remote Start Connector Connector End View
Remote Start Connector Connector End View

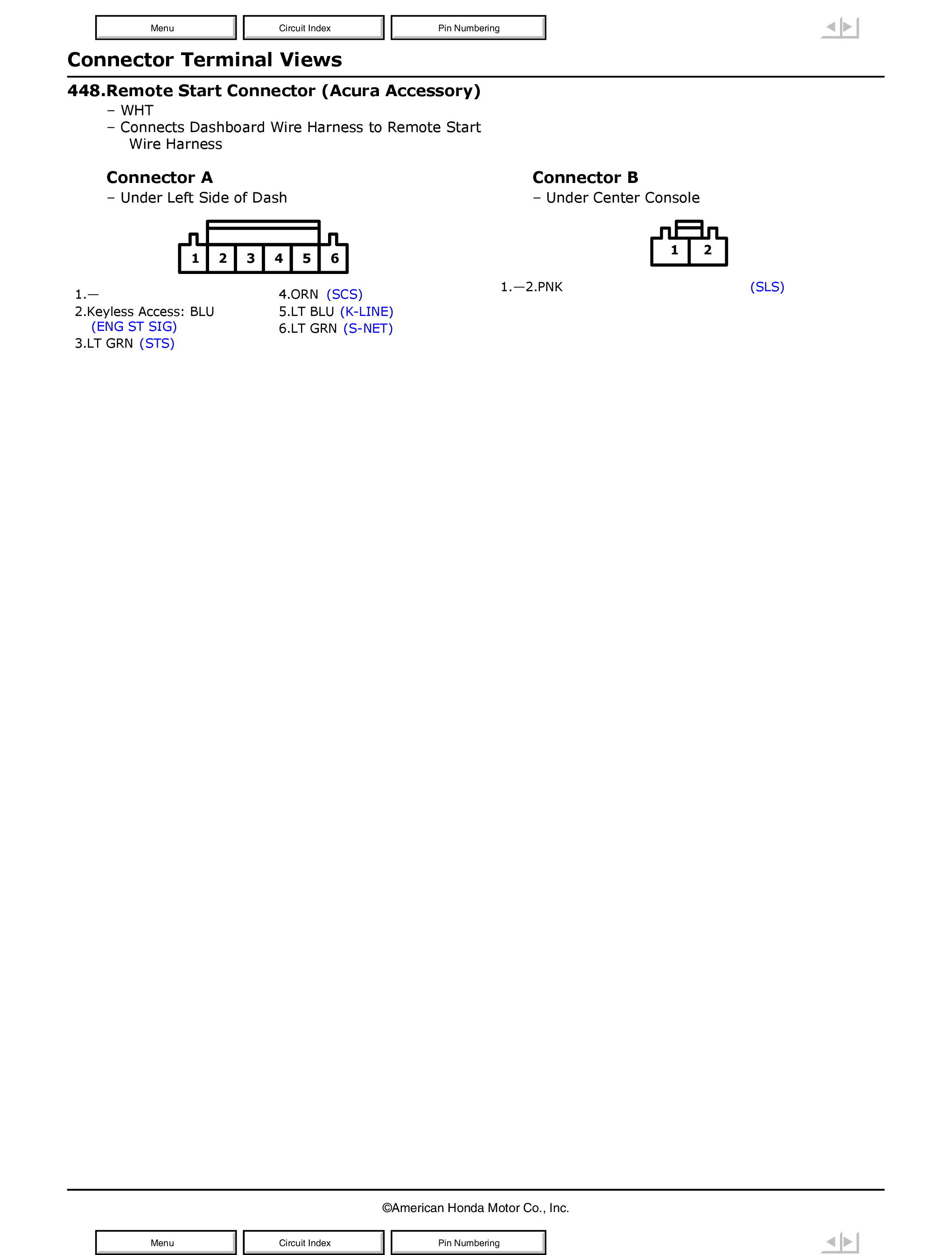

Fig 1: Remote Start Connector Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
