Remote Slot Connector End View
Remote Slot Connector End View

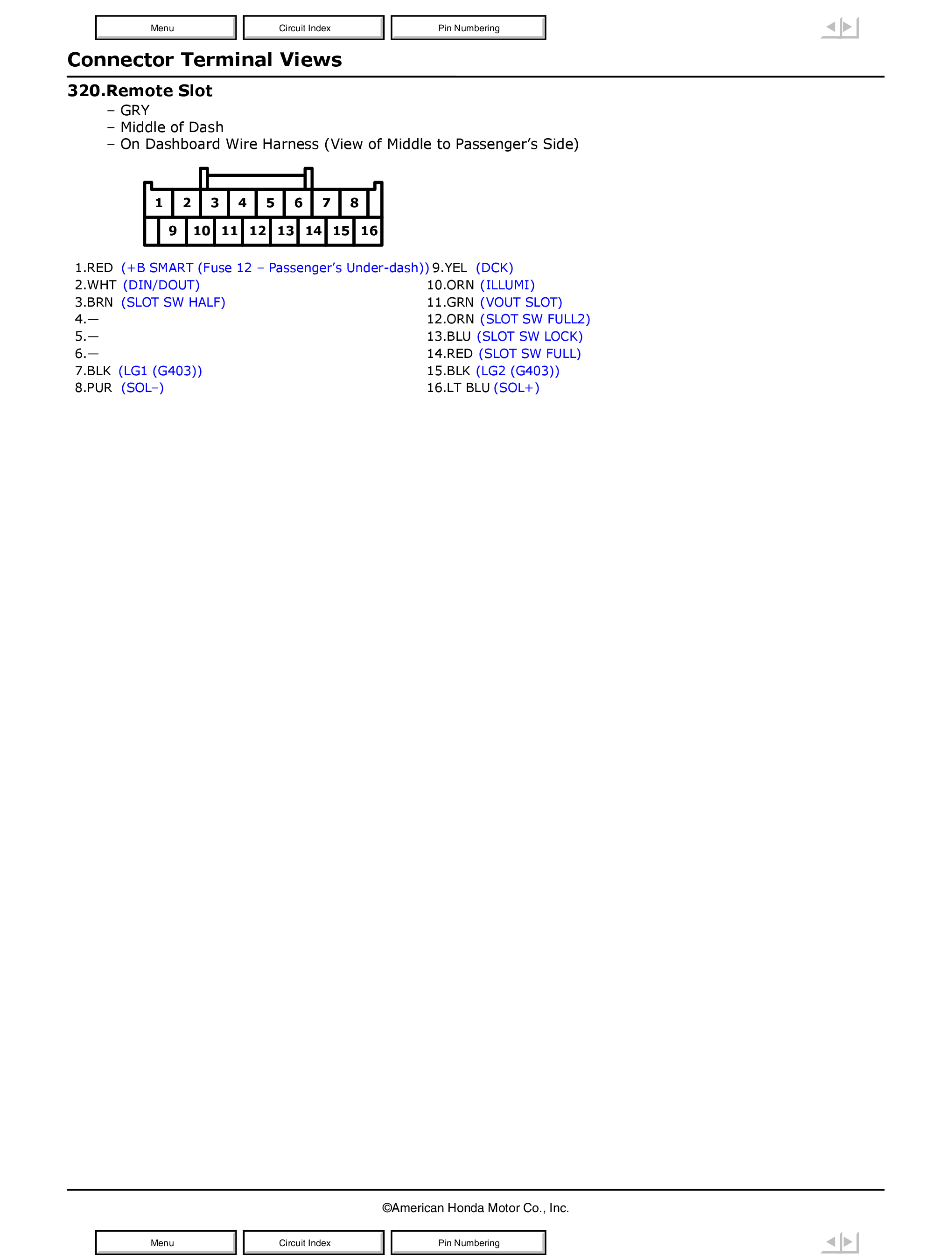

Fig 1: Remote Slot Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
