Rearview Camera Connector End View
Rearview Camera Connector End View

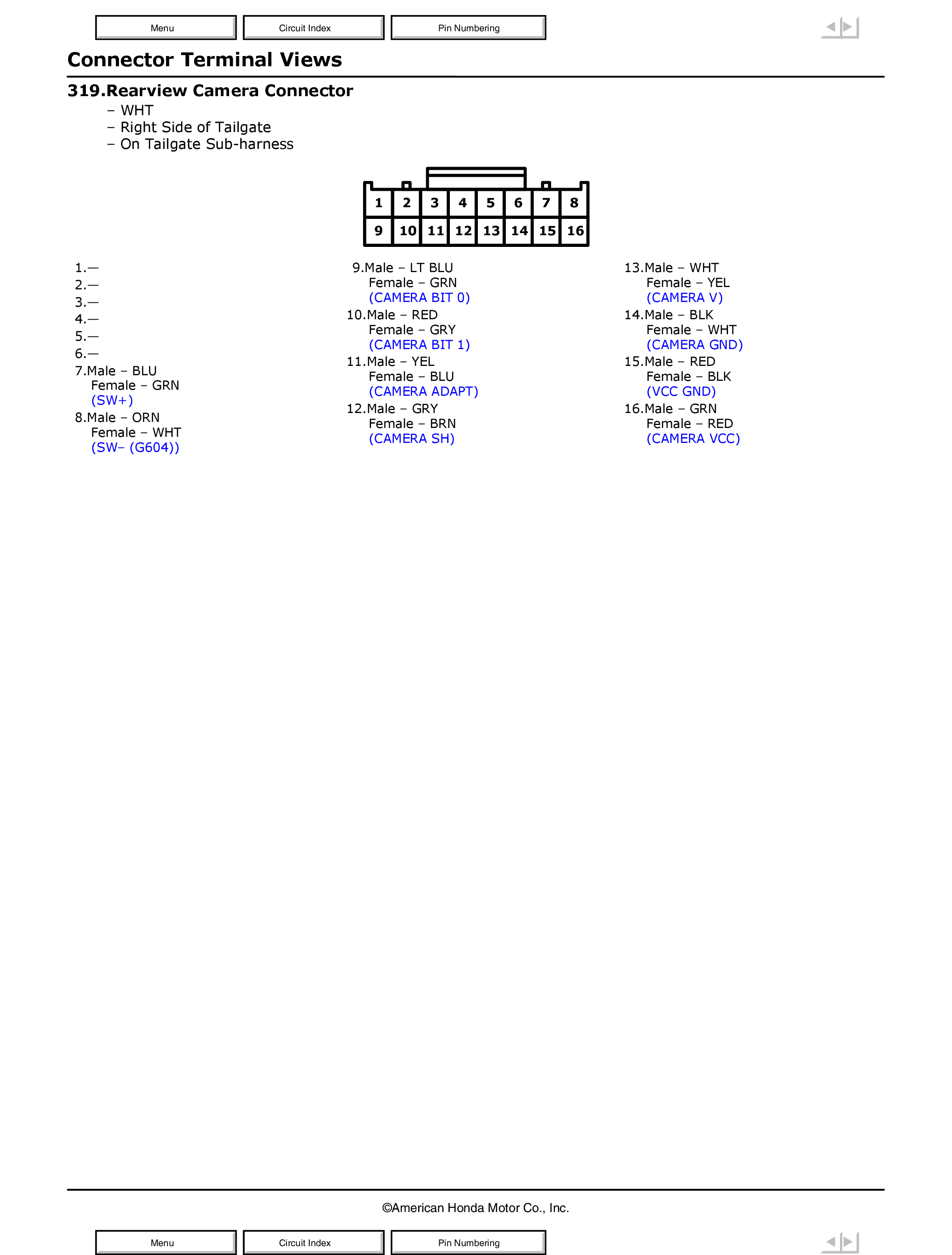

Fig 1: Rearview Camera Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
