Rearview Camera (Without Navigation) Connector End View
Rearview Camera (Without Navigation) Connector End View

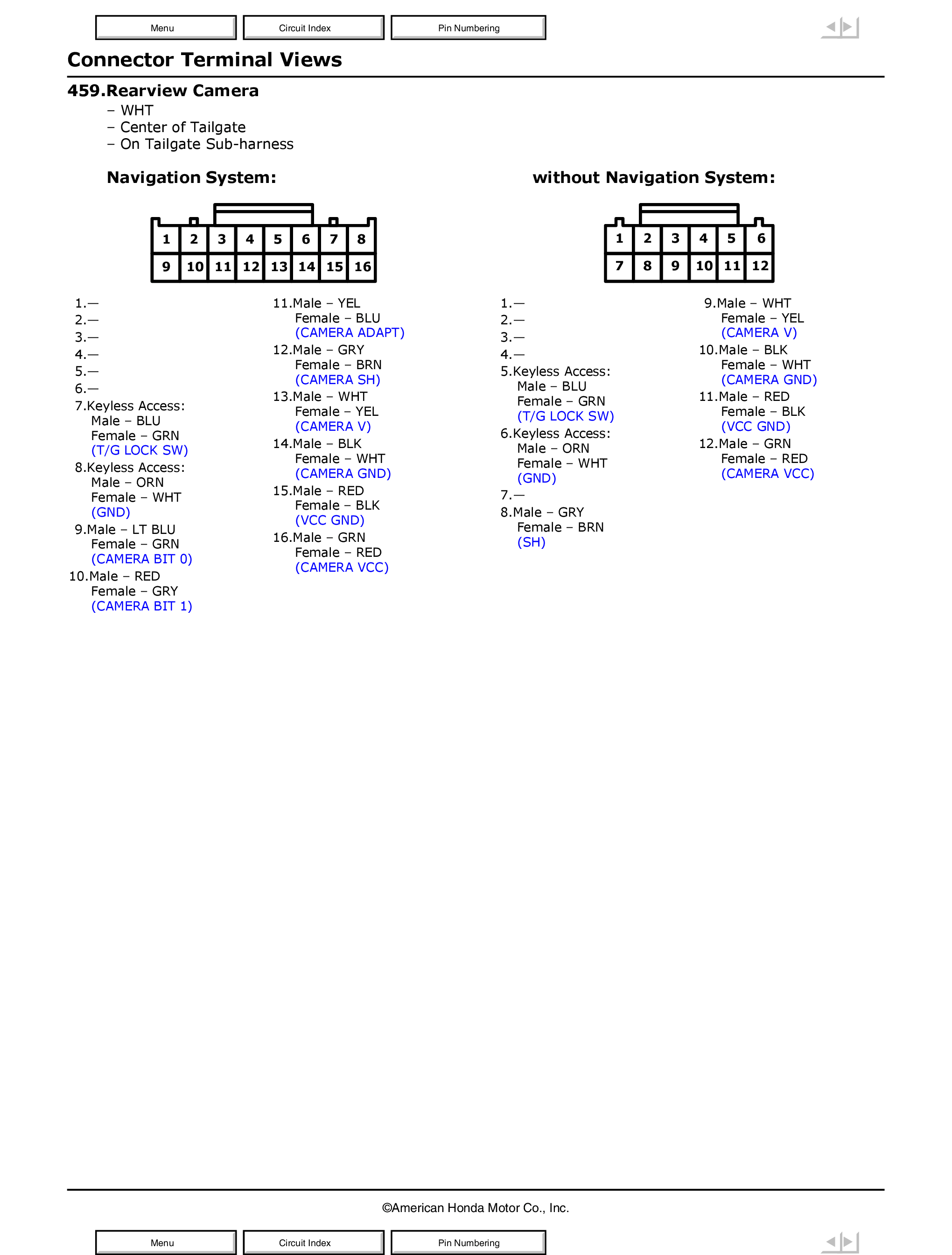

Fig 1: Rearview Camera (Without Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
