Integrated Dynamics System Switch (With IDS) Connector End View

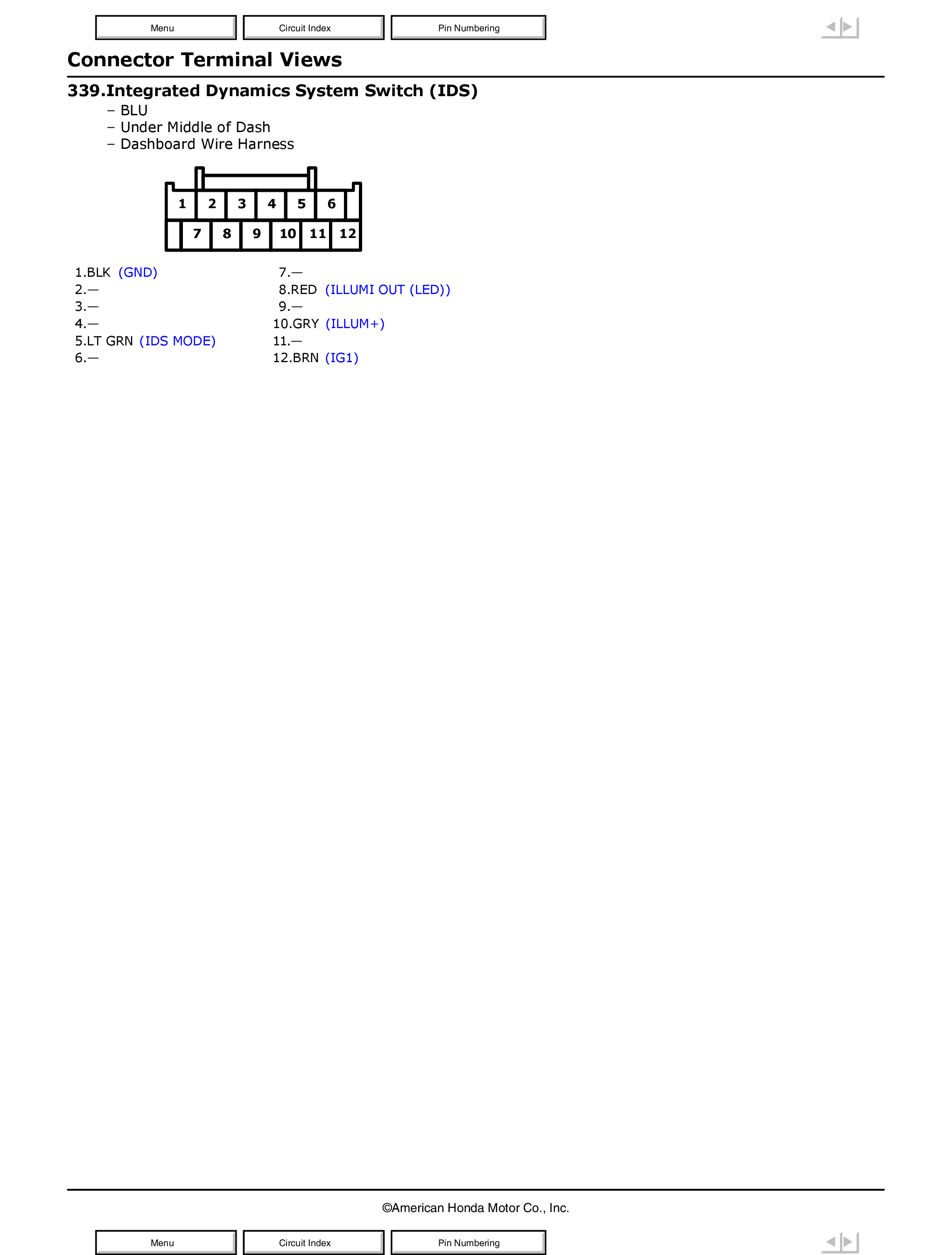

Fig 1: Integrated Dynamics System Switch (With IDS) Connector End View

GHHW12741

Courtesy of AMERICAN HONDA MOTOR CO., INC.
