Input Shaft (Mainshaft) Speed Sensor Connector End View

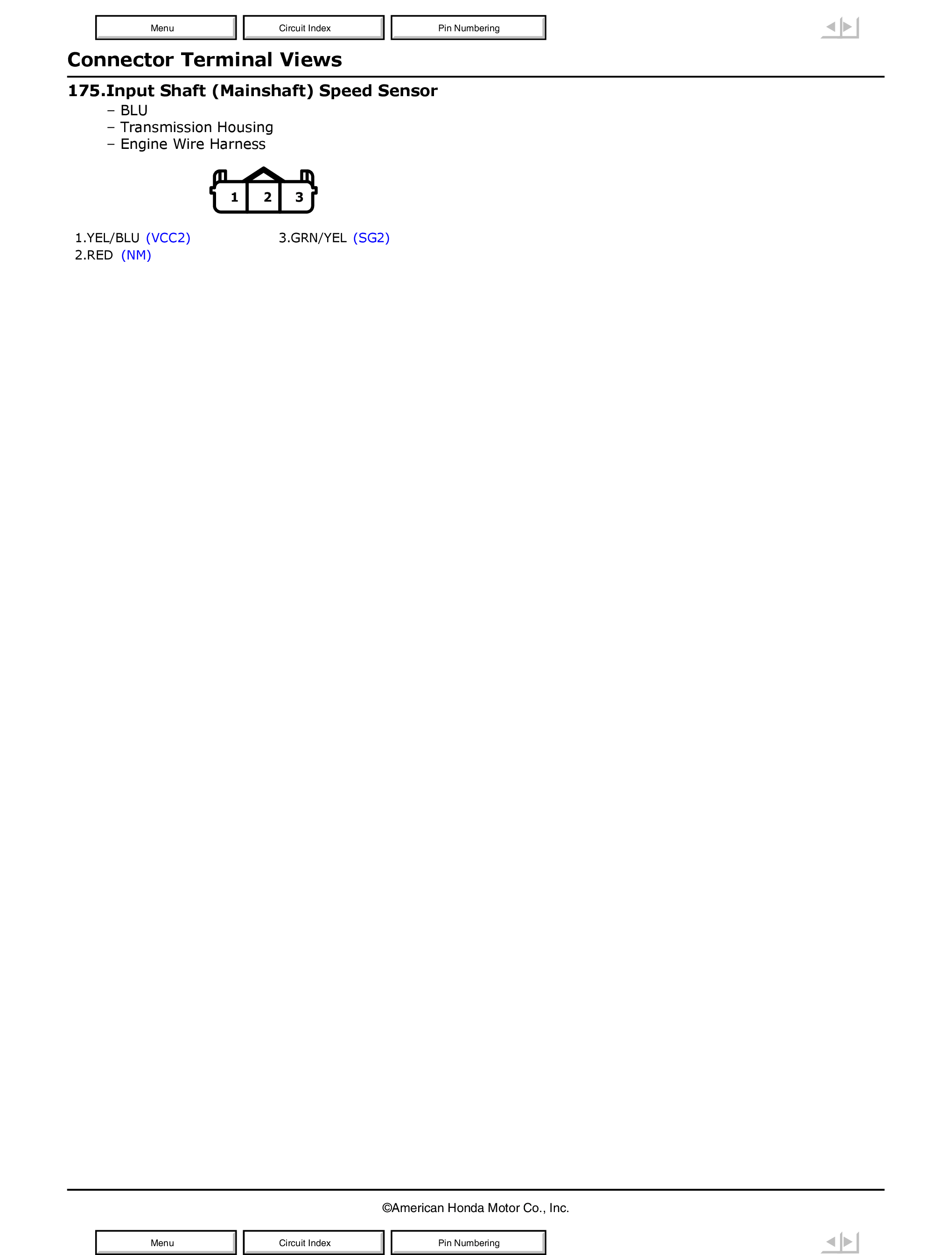

Fig 1: Input Shaft (Mainshaft) Speed Sensor Connector End View
GHHW12590Courtesy of AMERICAN HONDA MOTOR CO., INC.

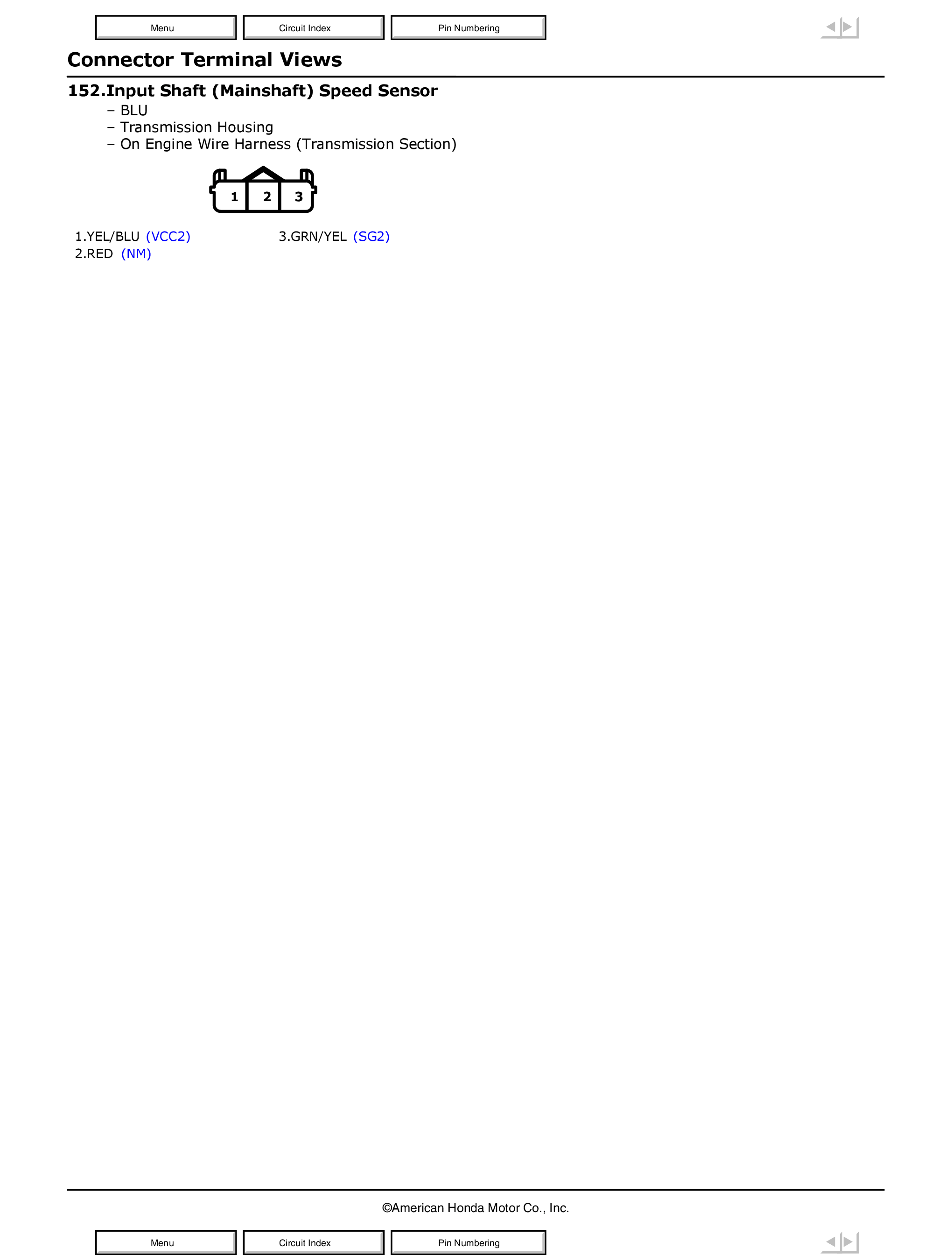

Fig 1: Input Shaft (Mainshaft) Speed Sensor Connector End View
GHHW13014Courtesy of AMERICAN HONDA MOTOR CO., INC.
