Driver's Power Seat Adjustment Switch Connector End View
Driver's Power Seat Adjustment Switch Connector End View

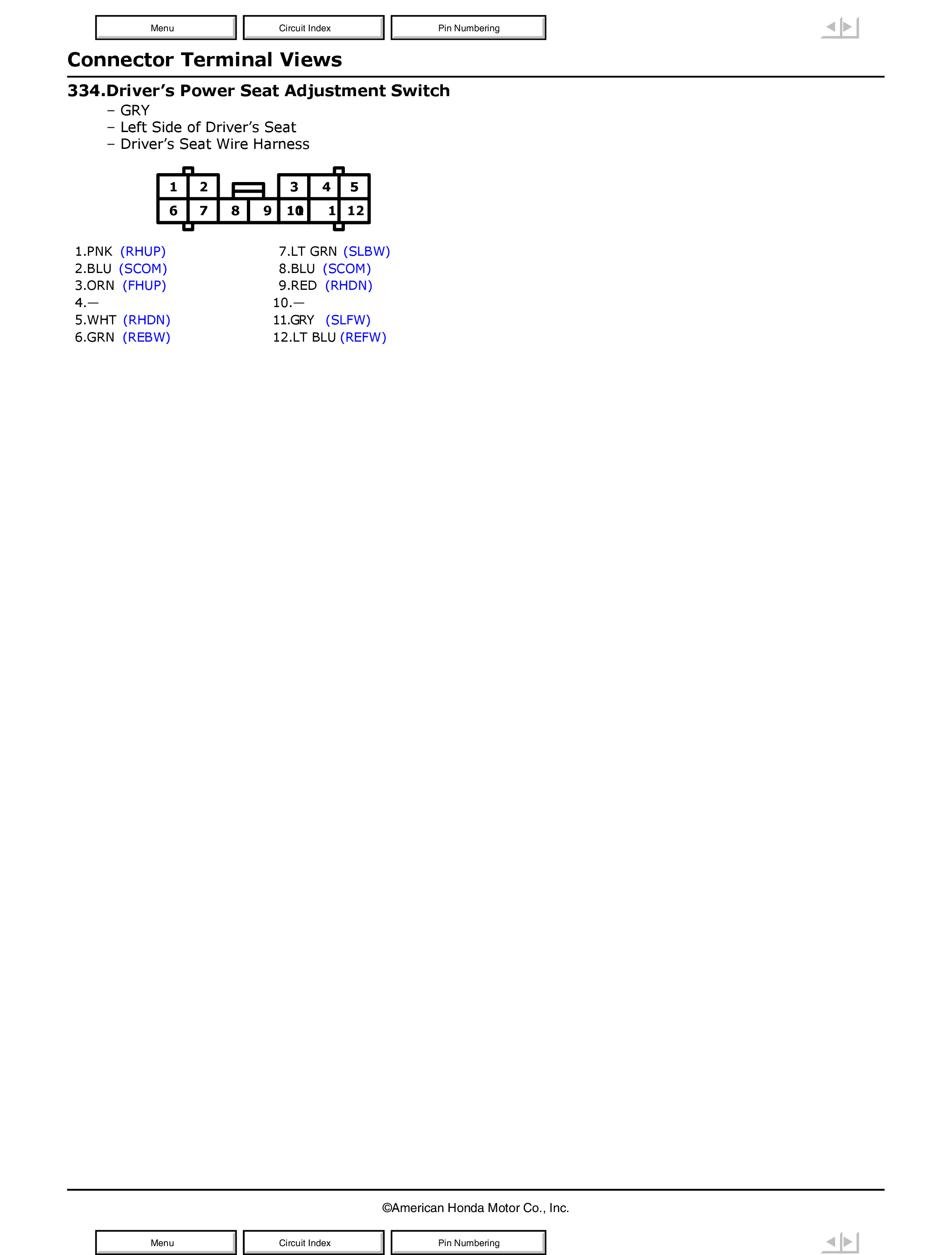

Fig 1: Driver's Power Seat Adjustment Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 1: Driver's Power Seat Adjustment Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
