DLC Connector End View
DLC Connector End View

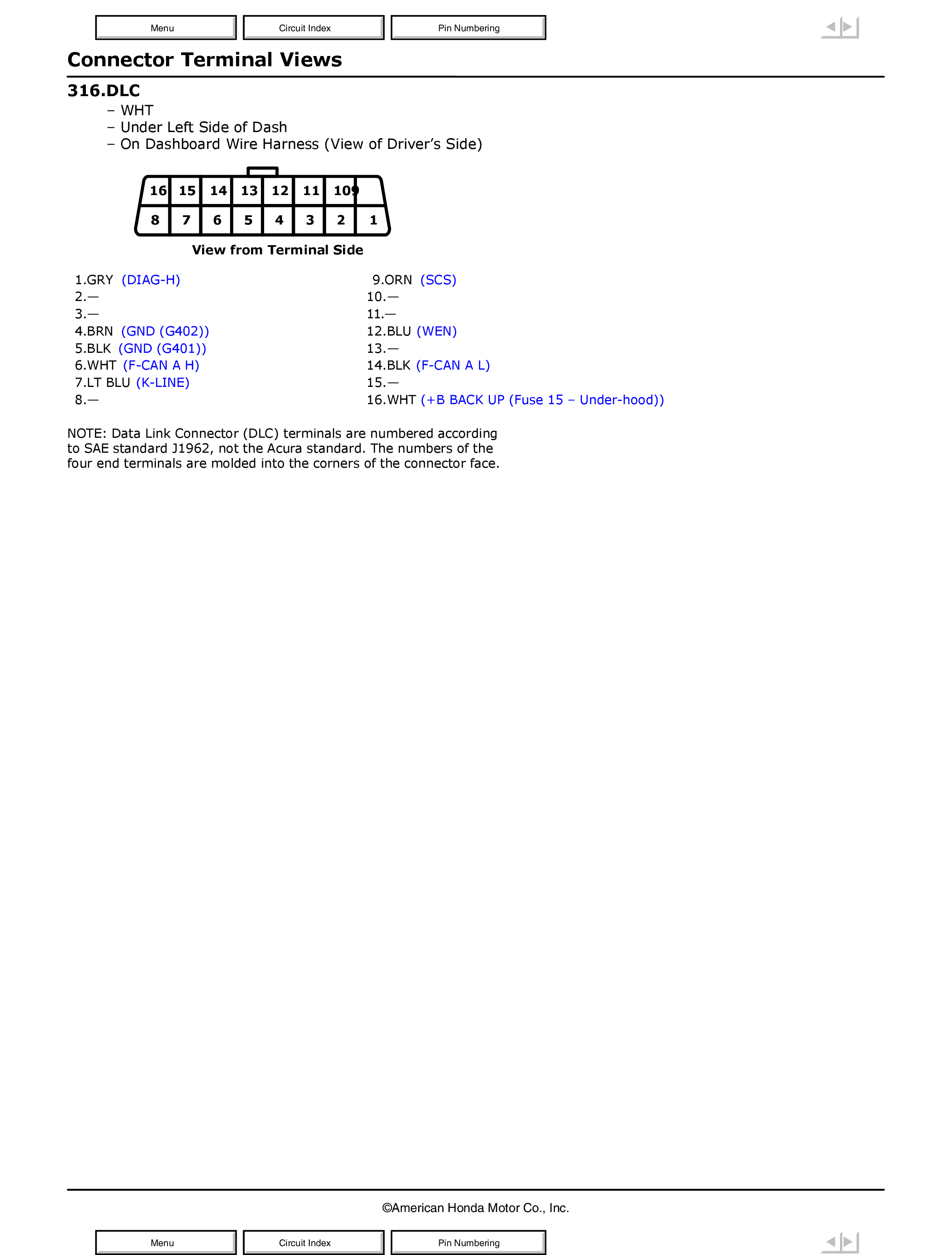

Fig 1: DLC Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

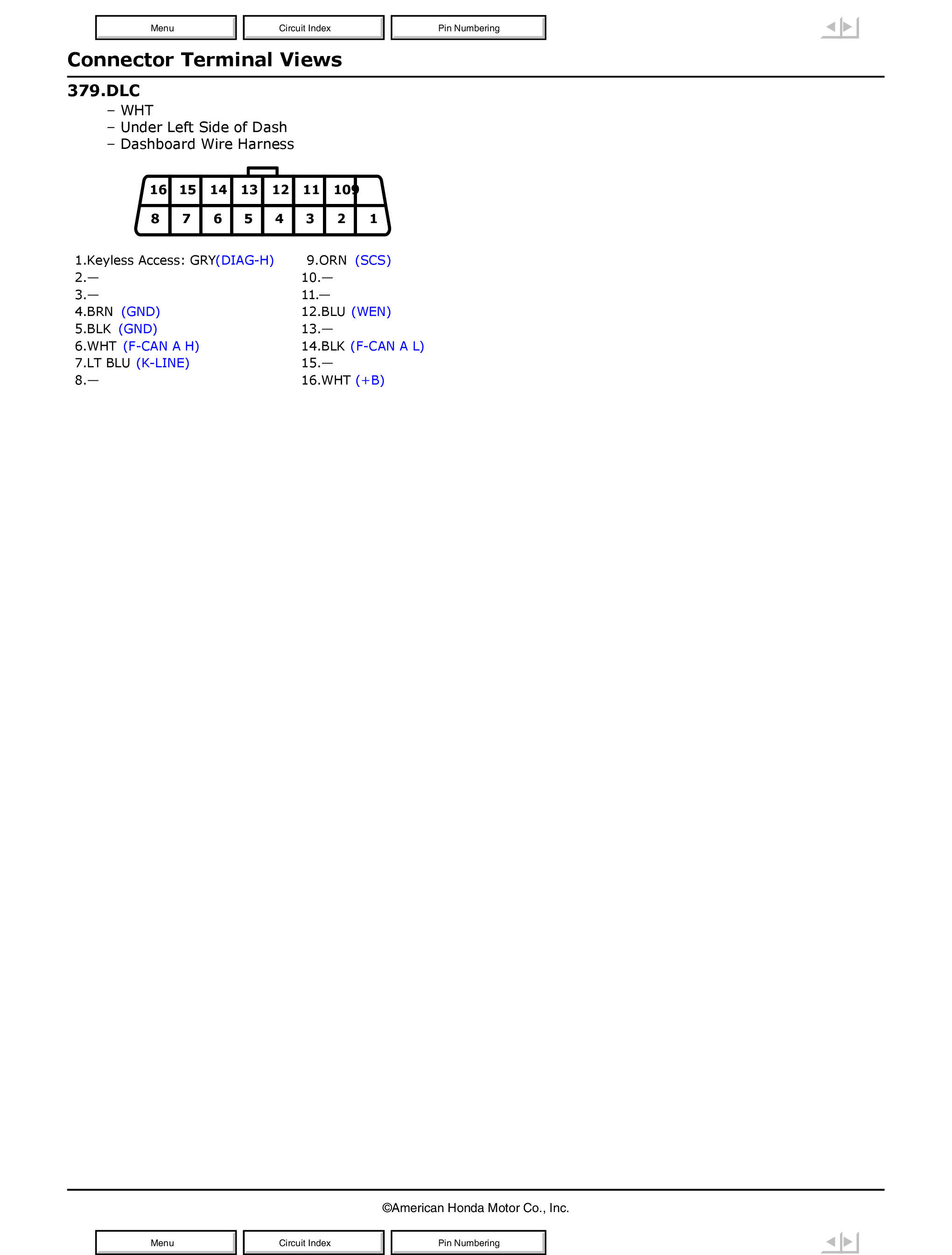

Fig 1: DLC Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
