Brake Fluid Level Switch Connector End View
Brake Fluid Level Switch Connector End View

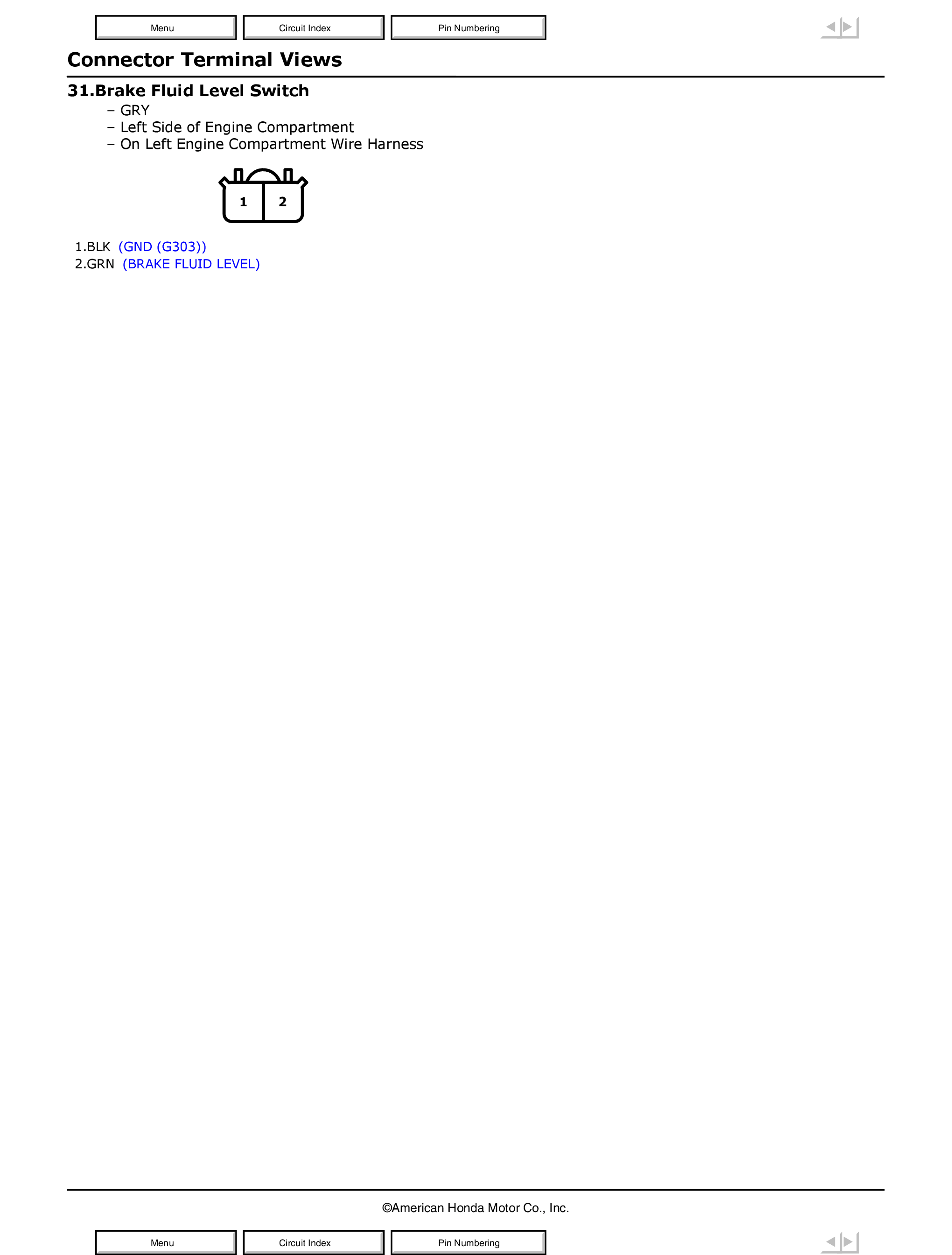

Fig 1: Brake Fluid Level Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

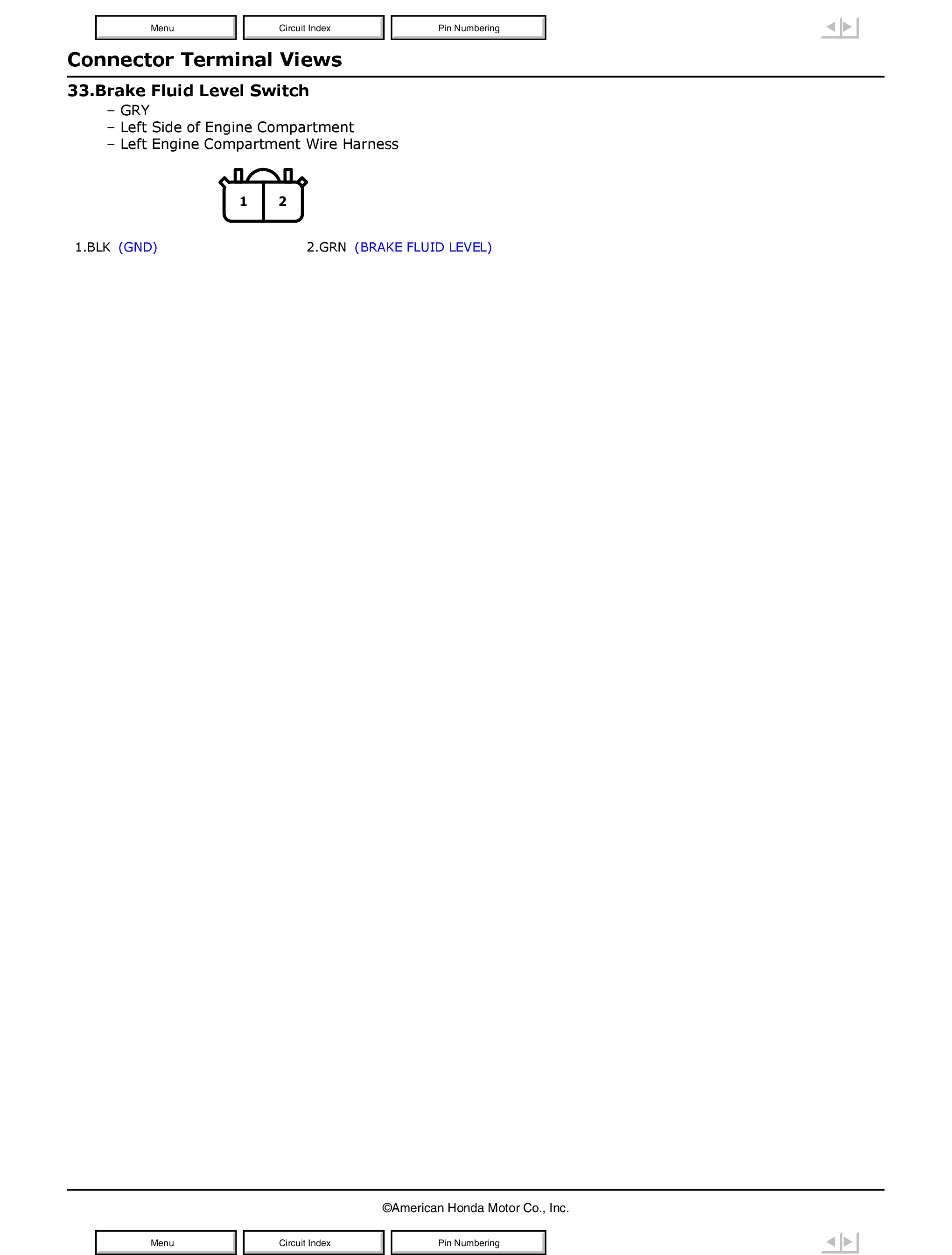

Fig 1: Brake Fluid Level Switch Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
