without Keyless Access

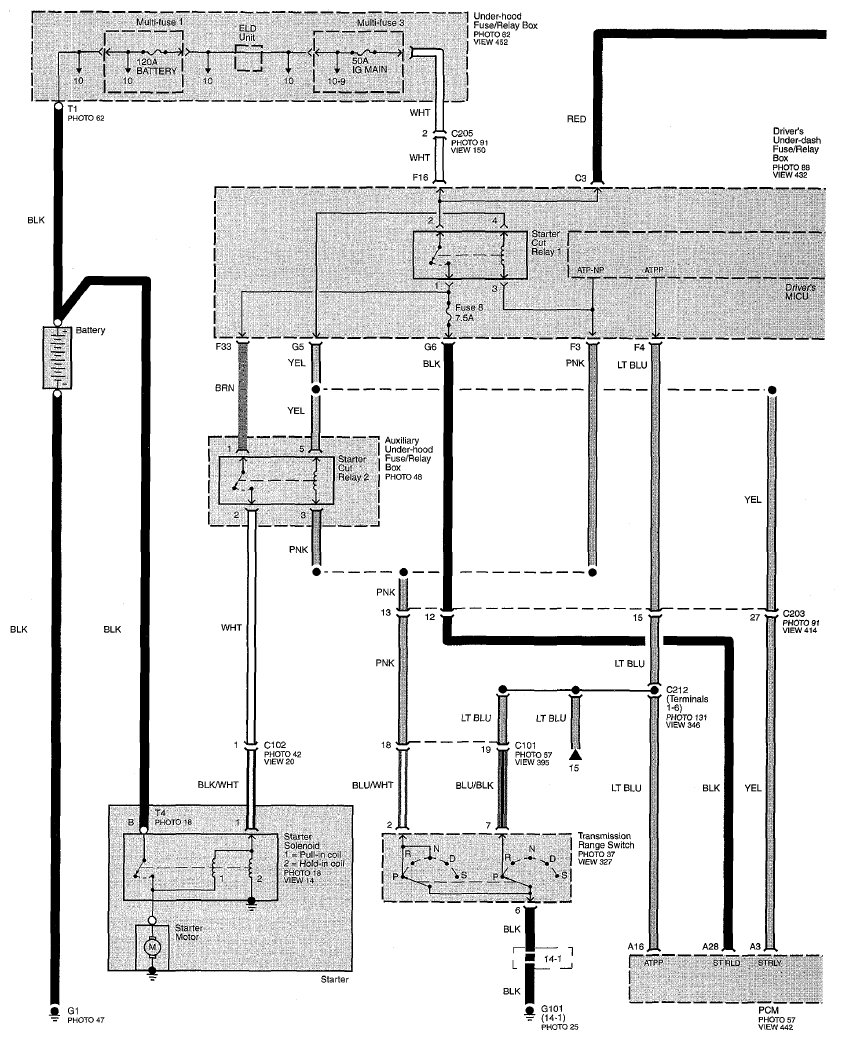

Fig 1: Starting System Circuit Diagram - Without Keyless Access (Page 21)

G07747767

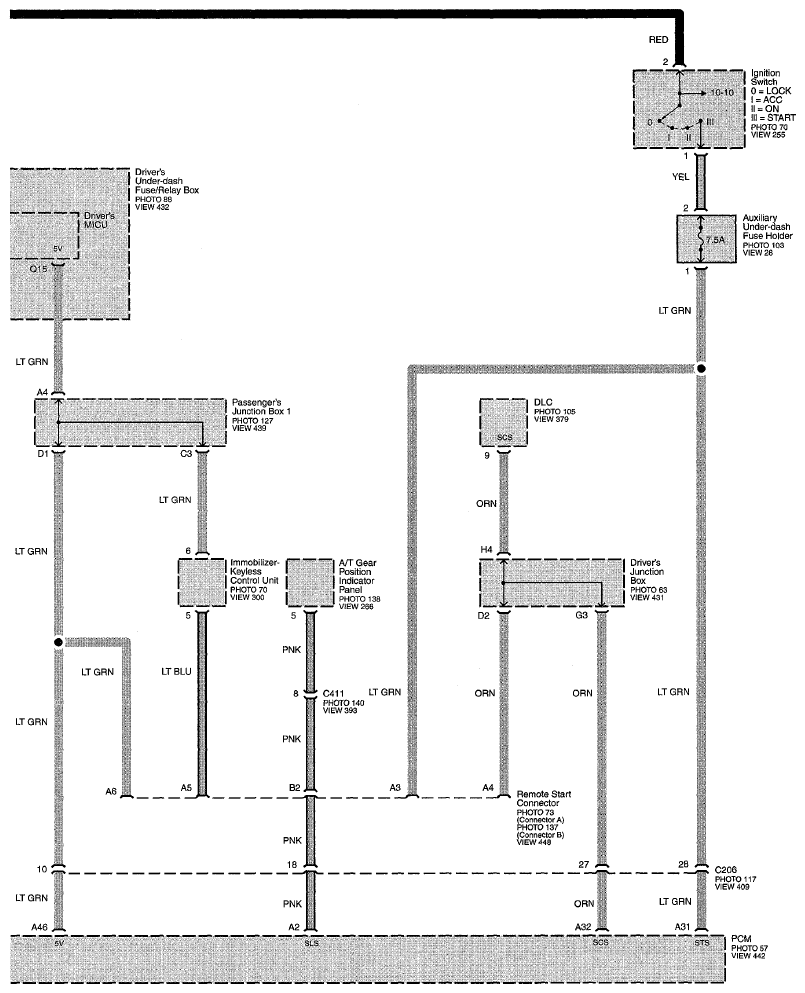

Fig 2: Starting System Circuit Diagram - Without Keyless Access (Page 21-1)

G07747768
