Keyless Access

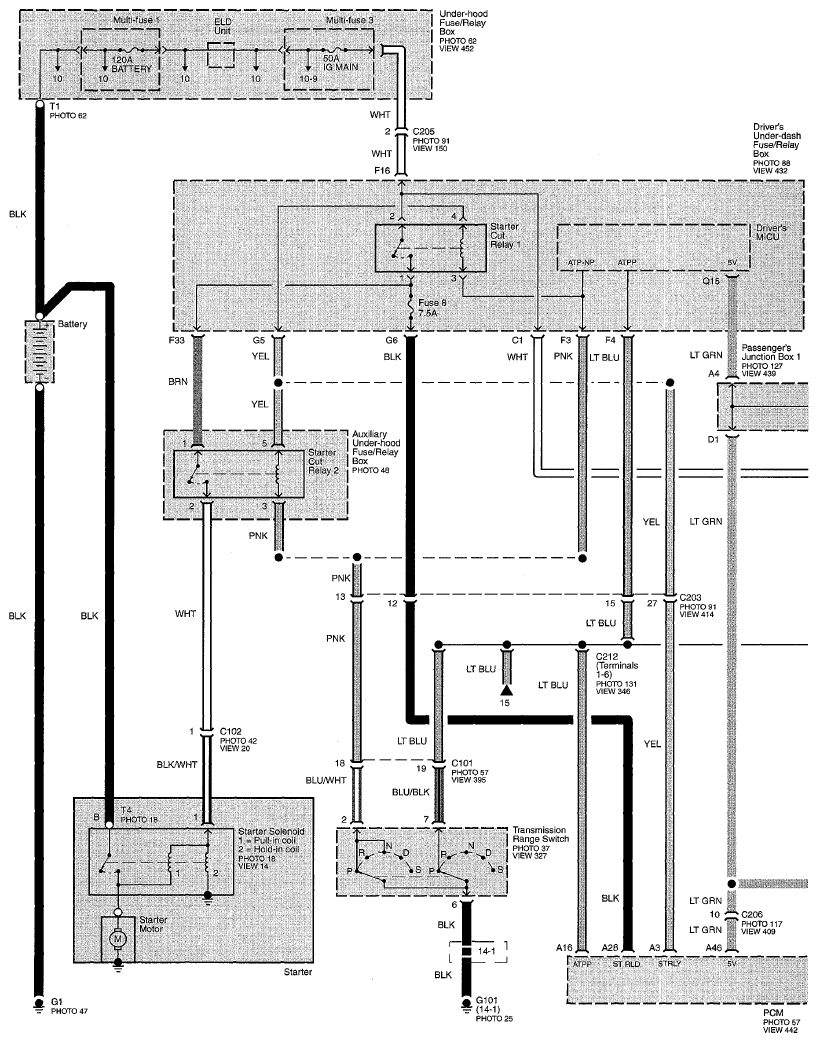

Fig 1: Starting System Circuit Diagram - Keyless Access (Page 21-2)
G07747769

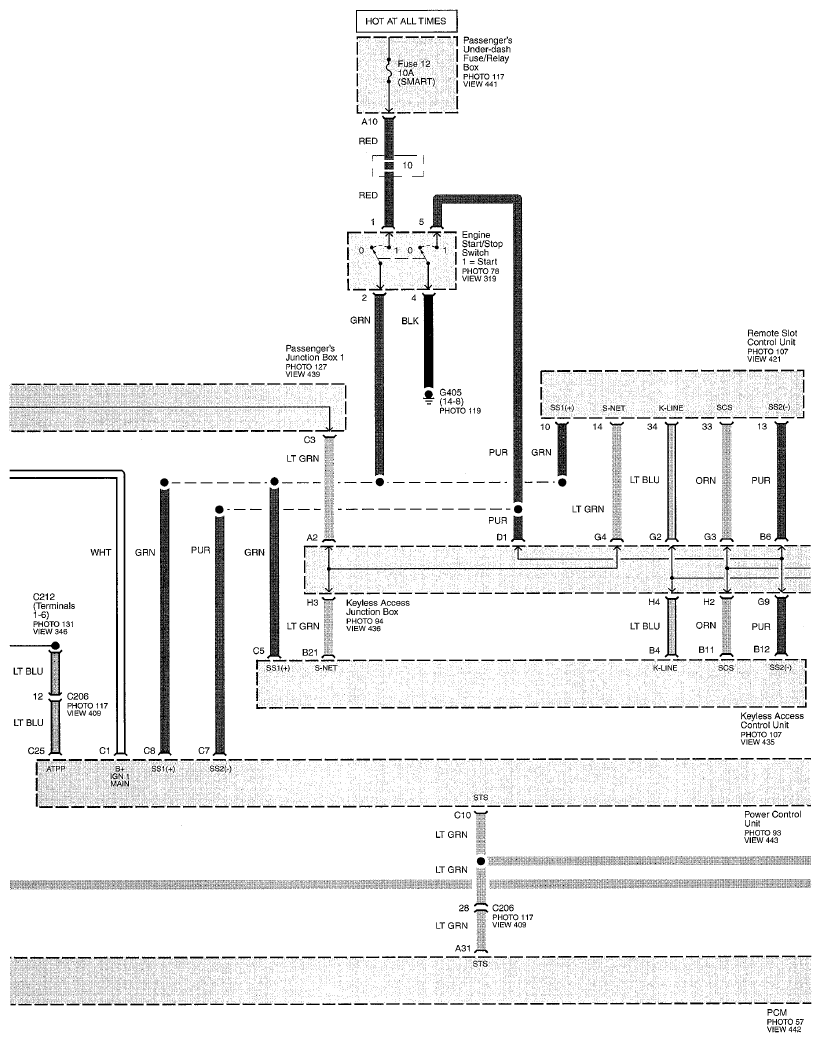

Fig 2: Starting System Circuit Diagram - Keyless Access (Page 21-3)
G07747770

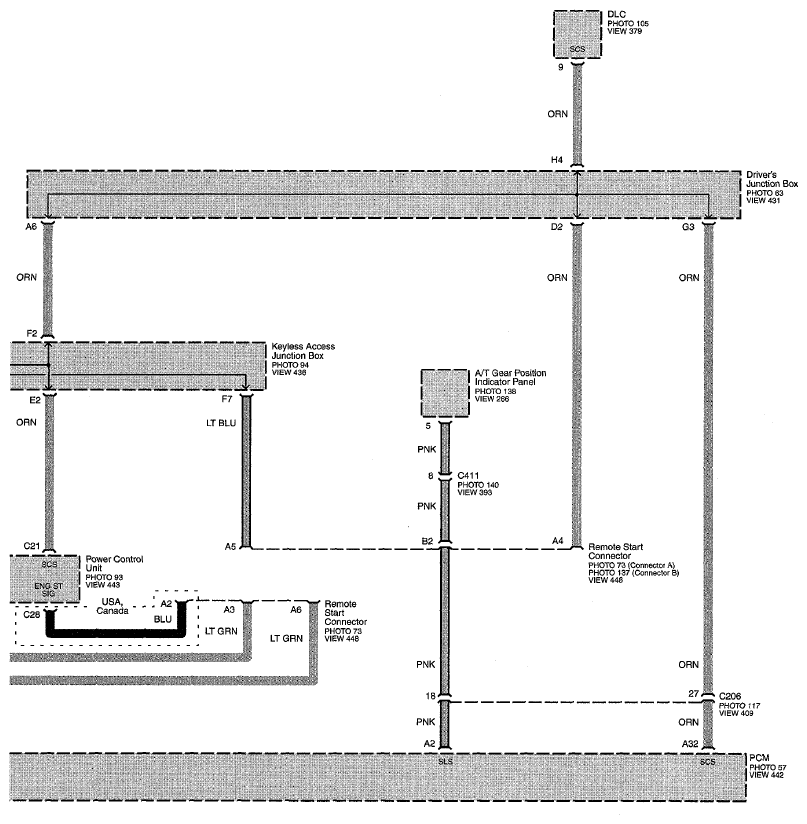

Fig 3: Starting System Circuit Diagram - Keyless Access (Page 21-4)
G07747771
