without Keyless Access

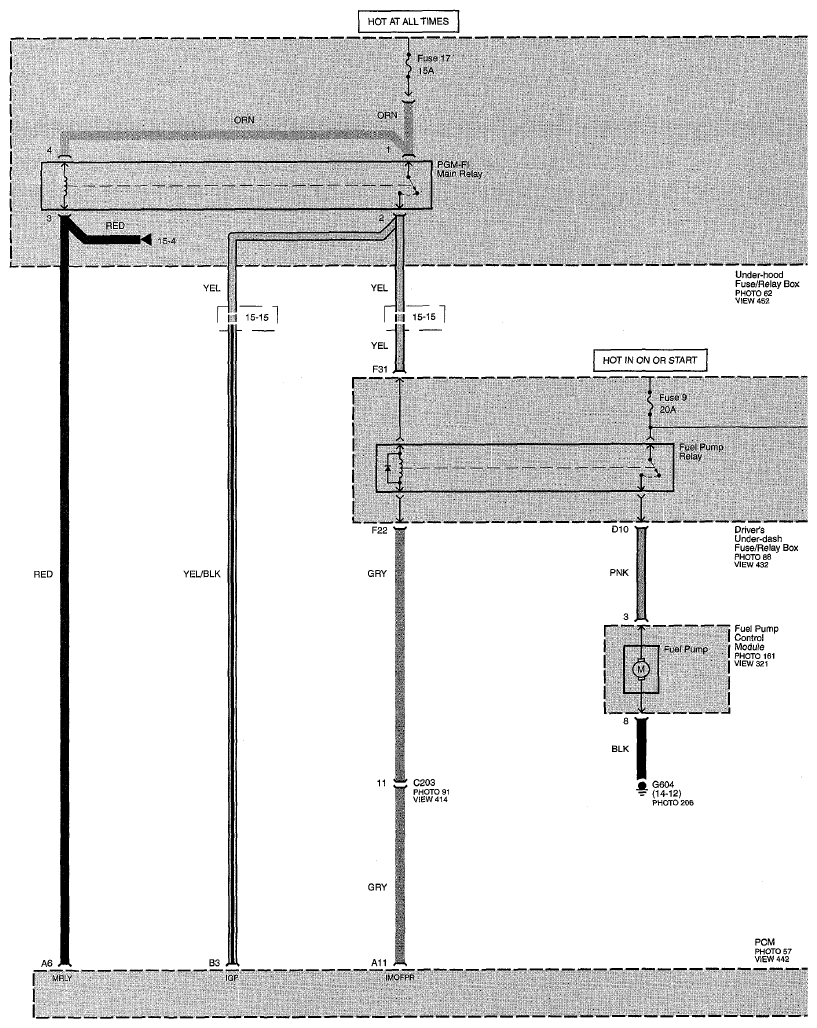

Fig 1: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132)
G07747937

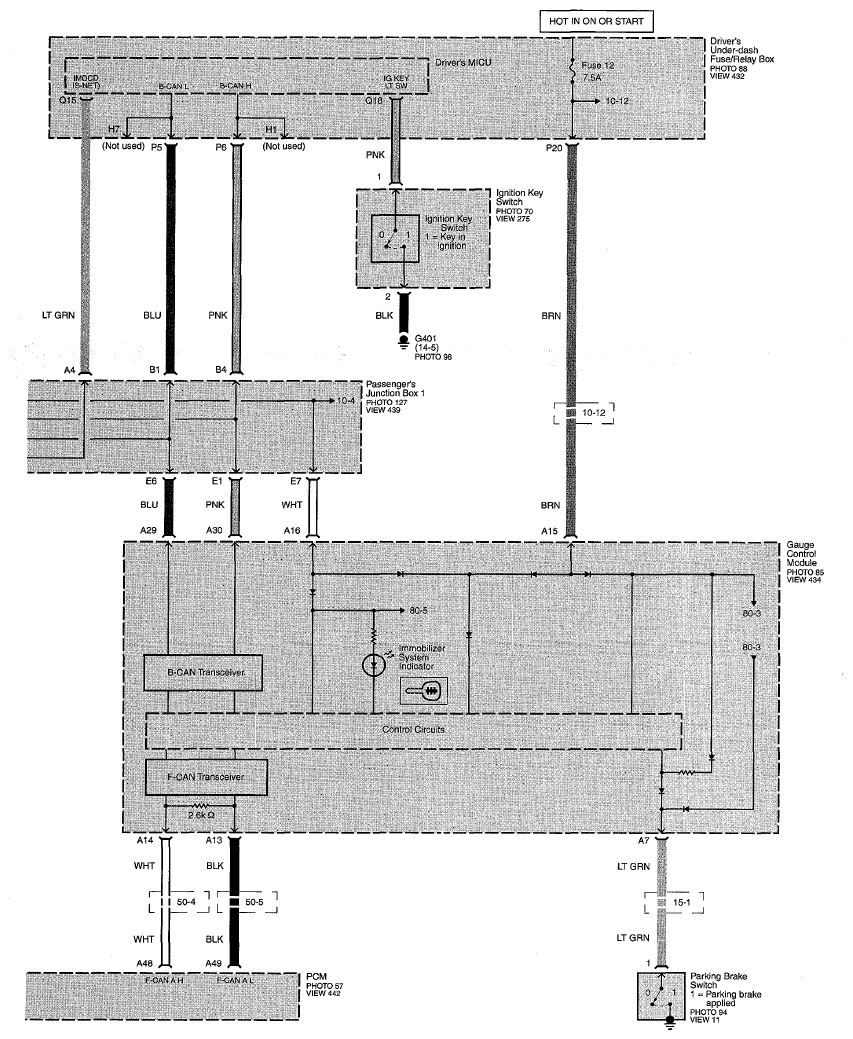

Fig 2: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132-1)
G07747938

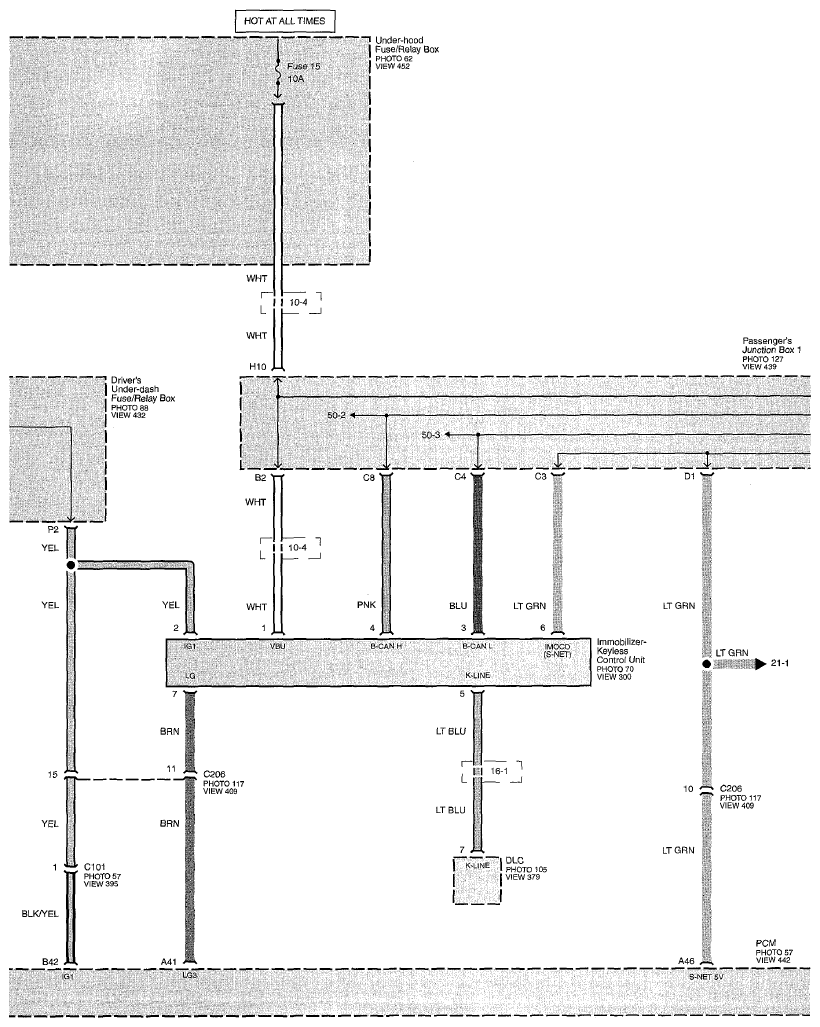

Fig 3: Immobilizer System Circuit Diagram - Without Keyless Access (Page 132-2)
G07747939
