Audio System
>>
without Navigation
without Navigation

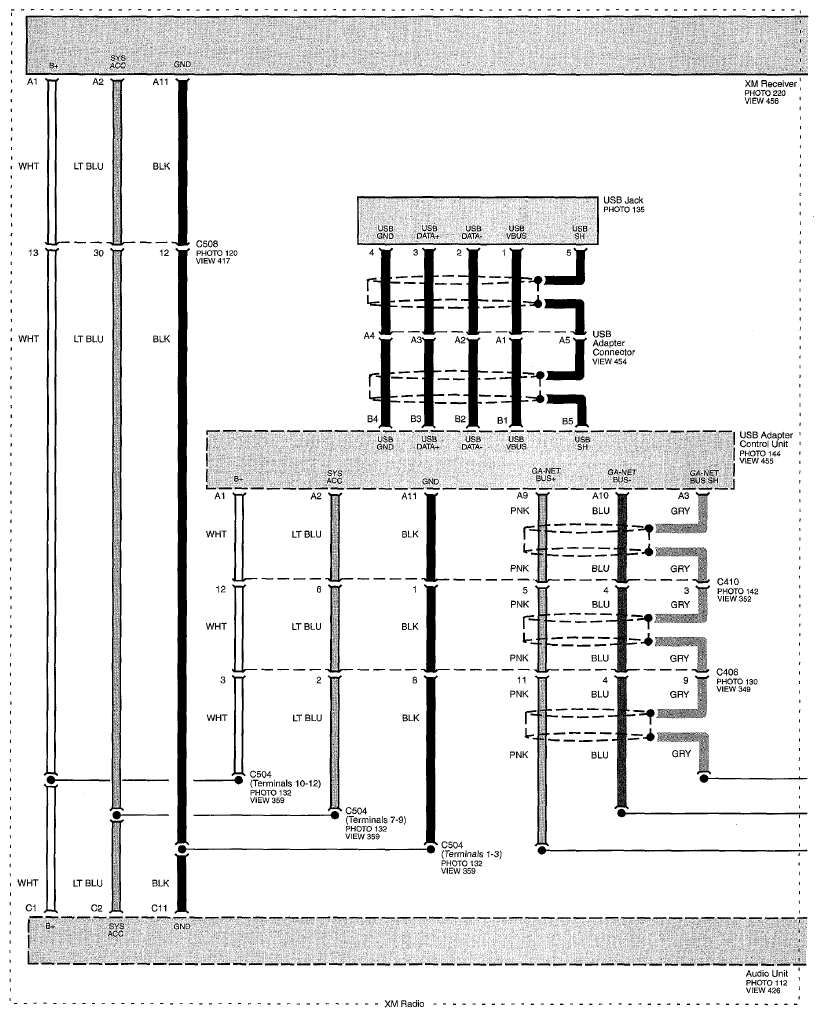

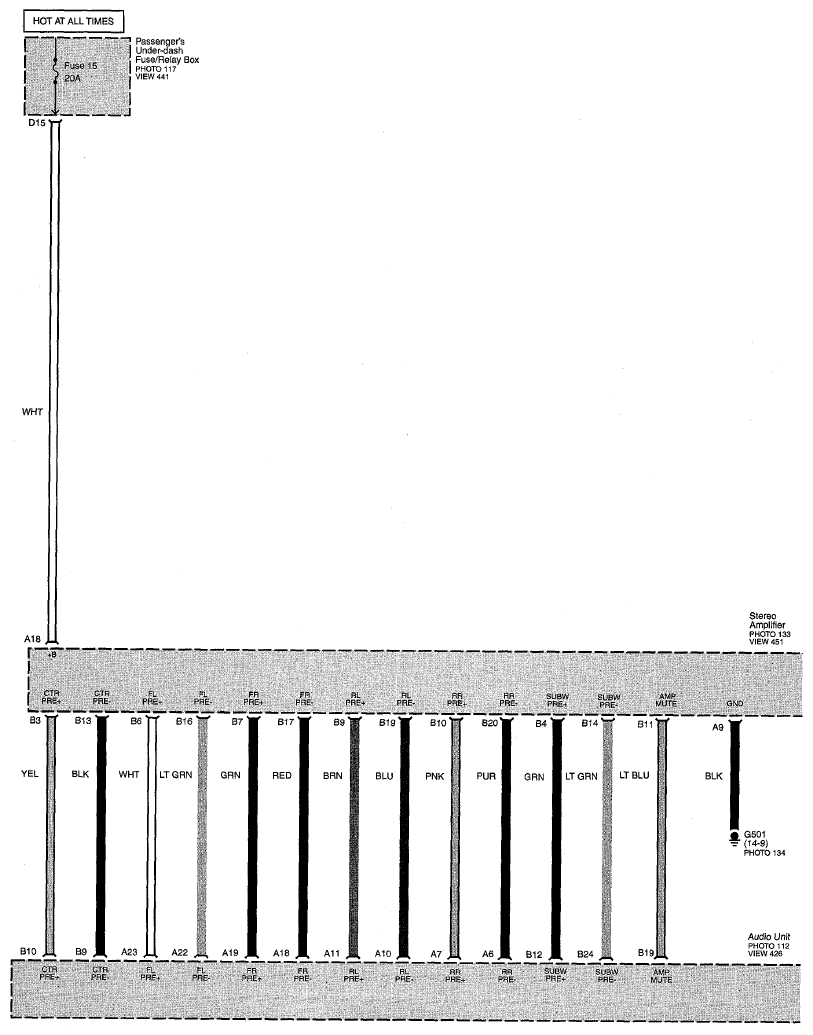

Fig 1: Audio System Circuit Diagram - Without Navigation (Page 150)

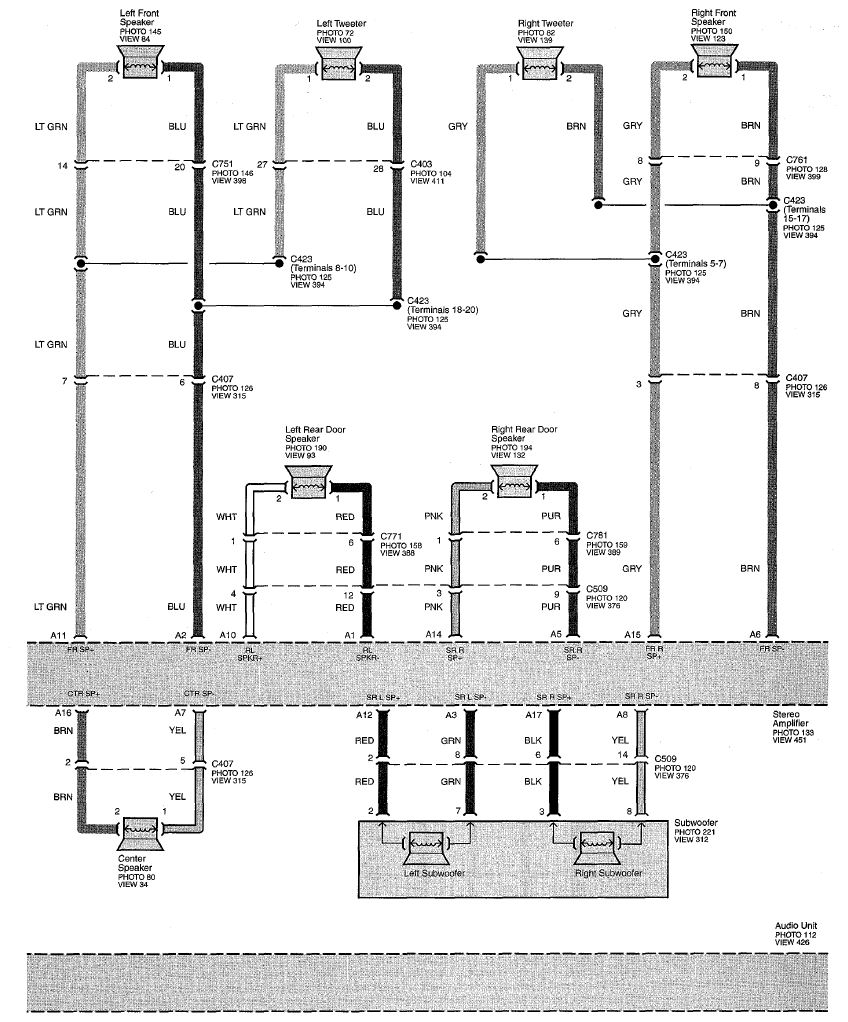

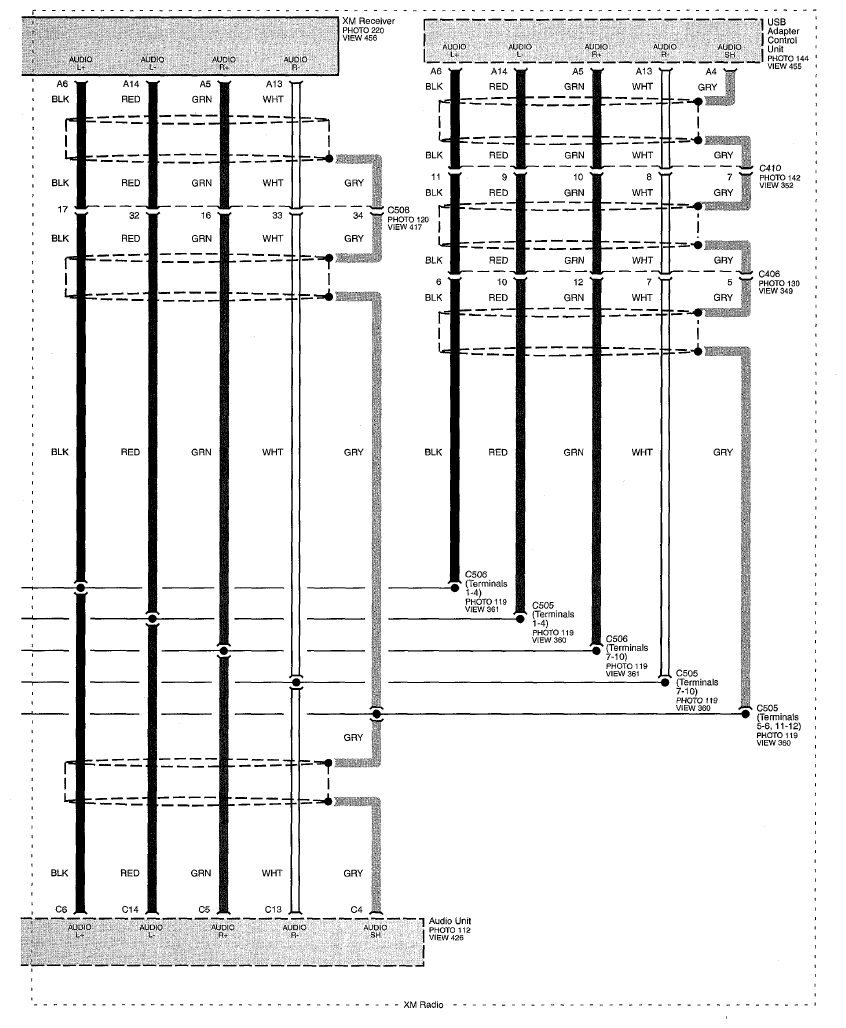

Fig 2: Audio System Circuit Diagram - Without Navigation (Page 150-1)

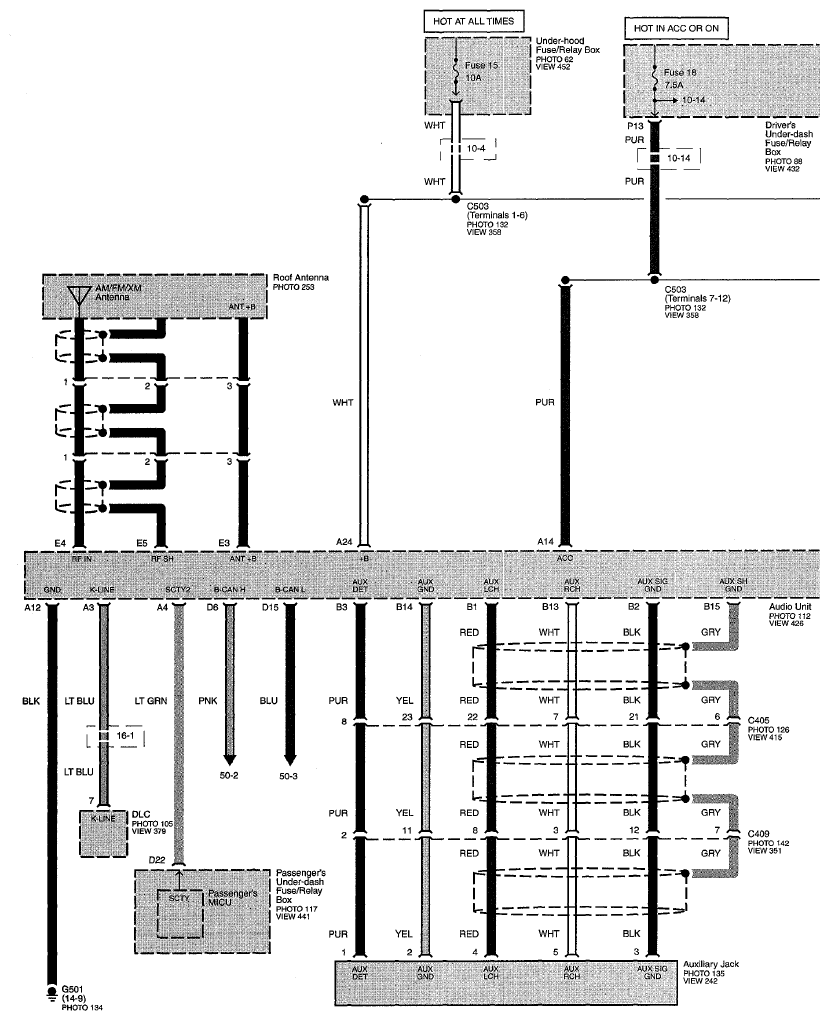

Fig 3: Audio System Circuit Diagram - Without Navigation (Page 150-2)

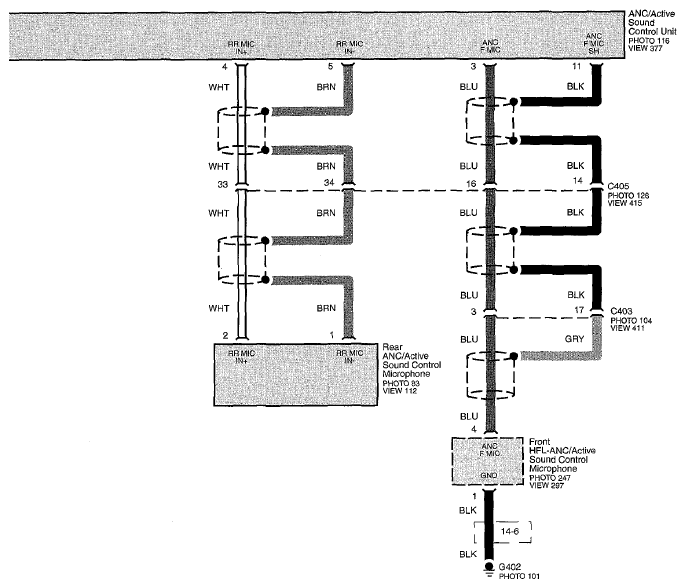

Fig 4: Audio System Circuit Diagram - Without Navigation (Page 150-3)

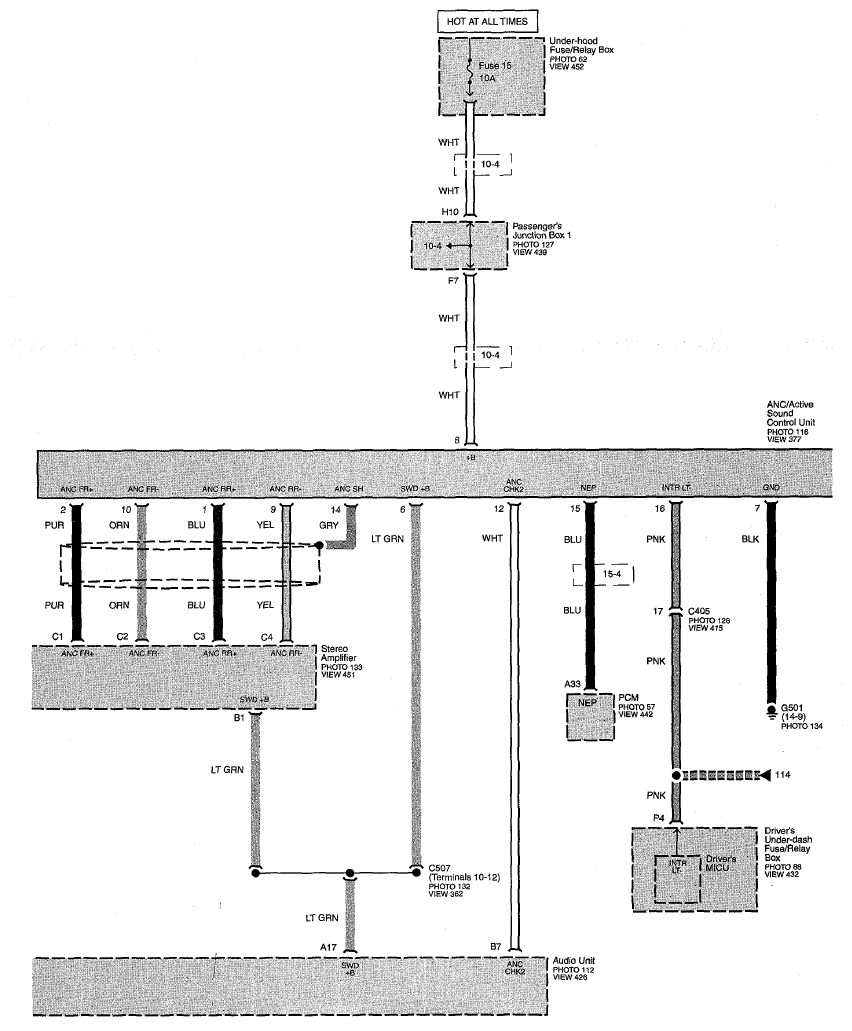

Fig 5: Audio System Circuit Diagram - Without Navigation (Page 150-4)

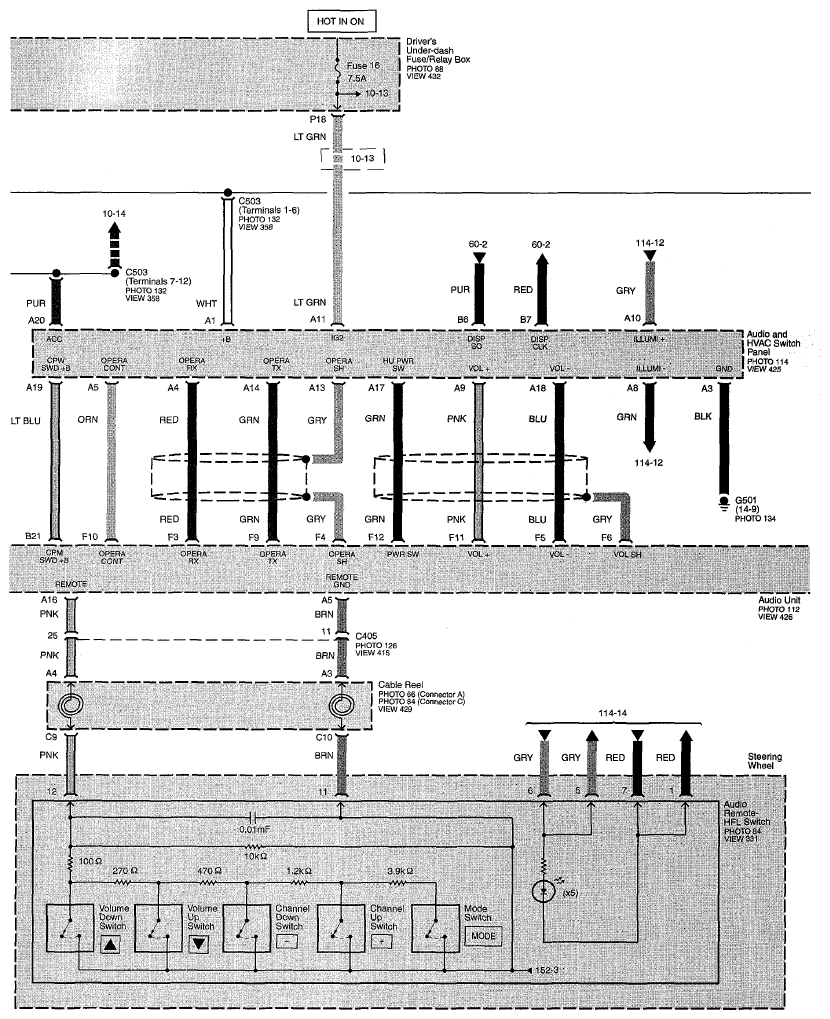

Fig 6: Audio System Circuit Diagram - Without Navigation (Page 150-5)

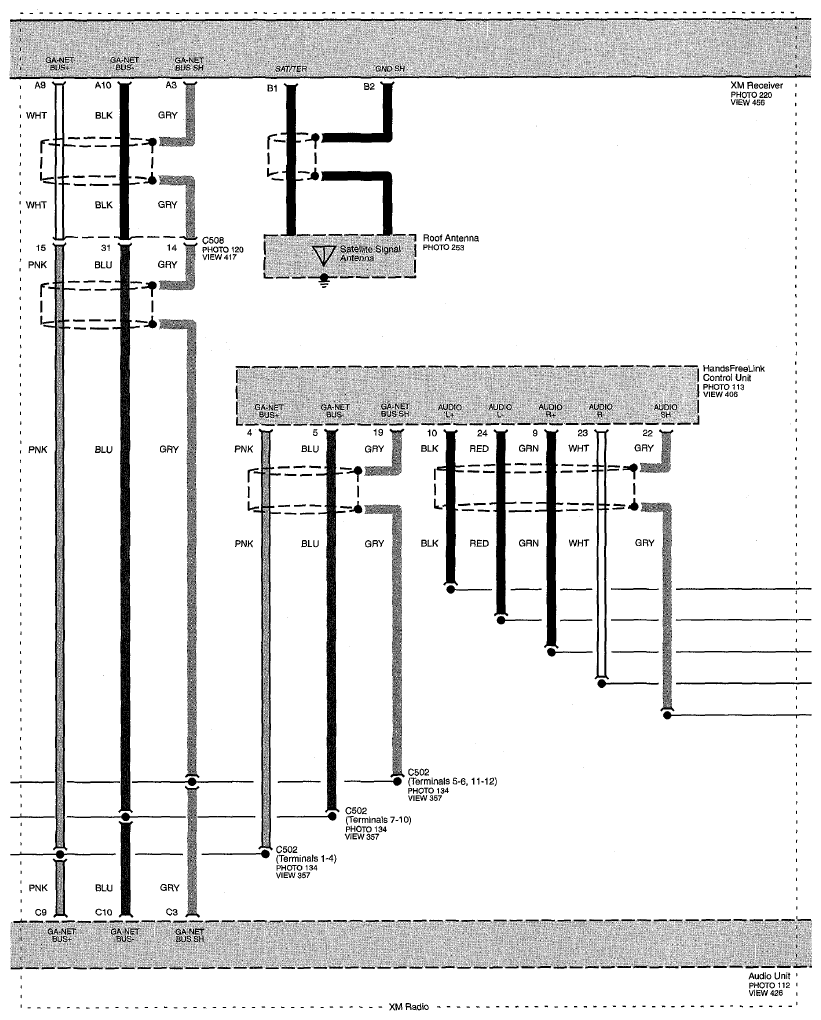

Fig 7: Audio System Circuit Diagram - Without Navigation (Page 150-6)

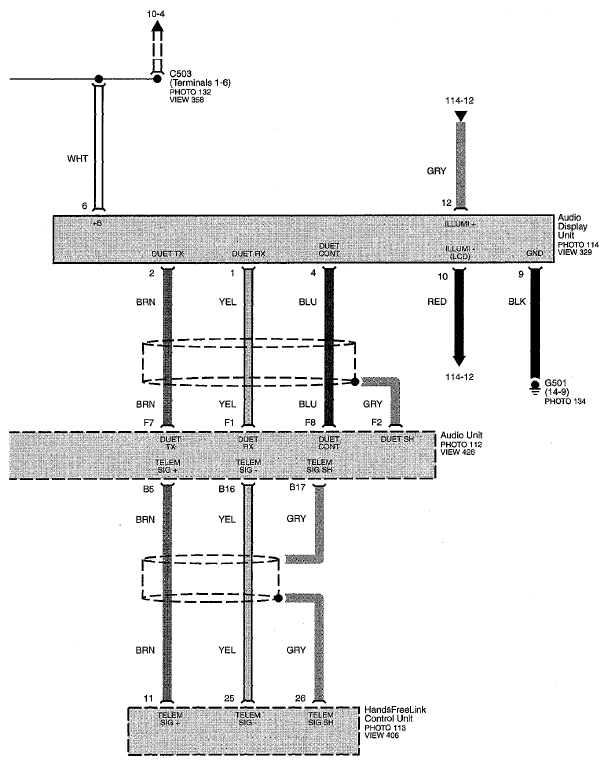

Fig 8: Audio System Circuit Diagram - Without Navigation (Page 150-7)
Fig 9: Audio System Circuit Diagram - Without Navigation (Page 150-8)
Fig 10: Audio System Circuit Diagram - Without Navigation (Page 150-9)
