Audio System: Navigation

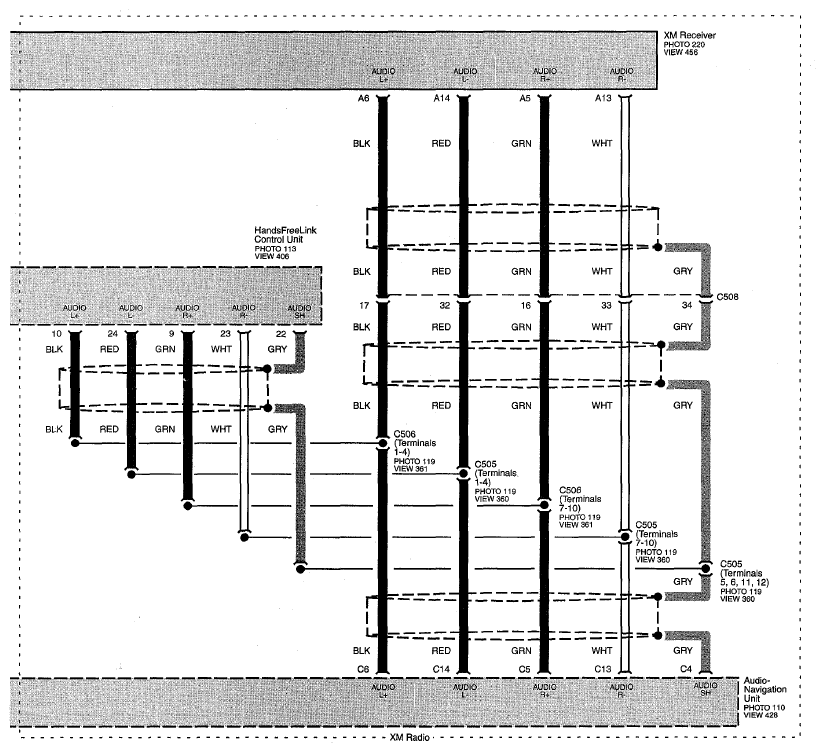

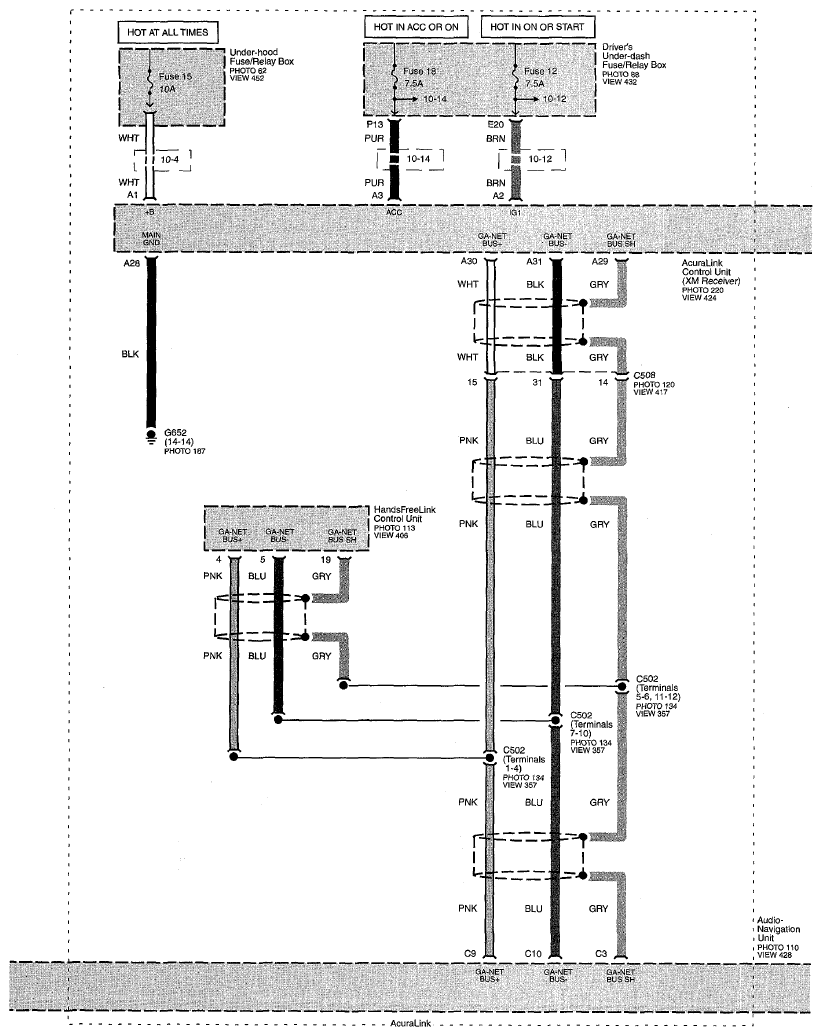

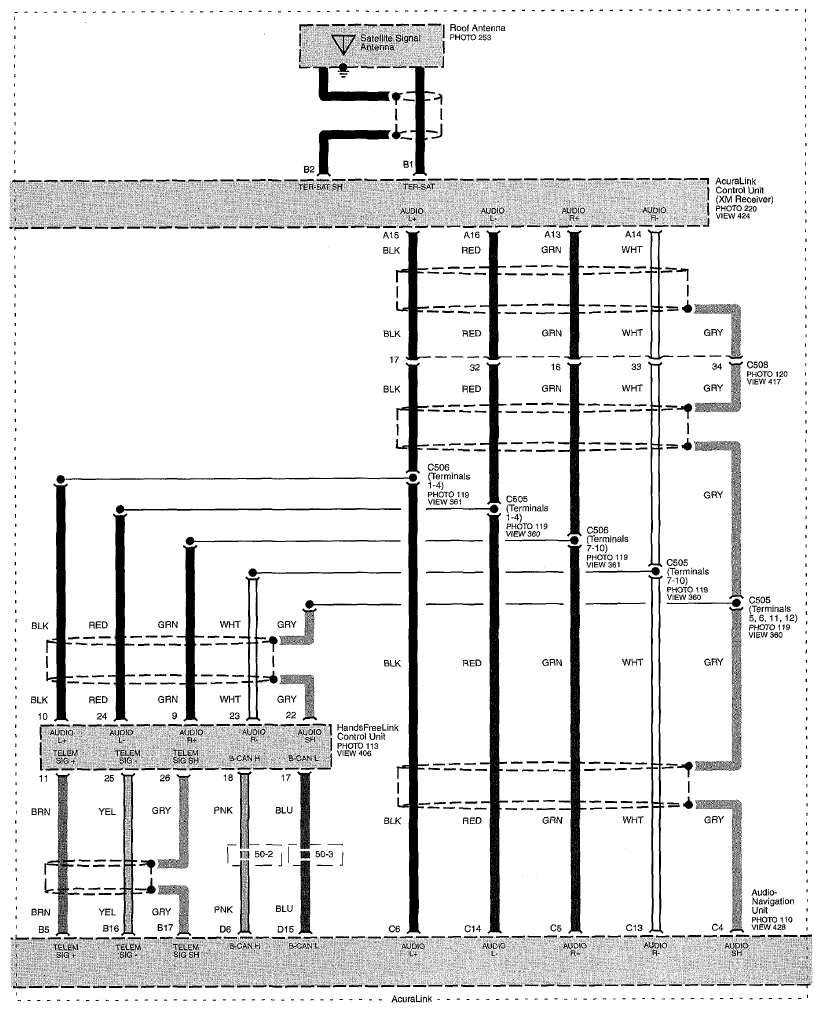

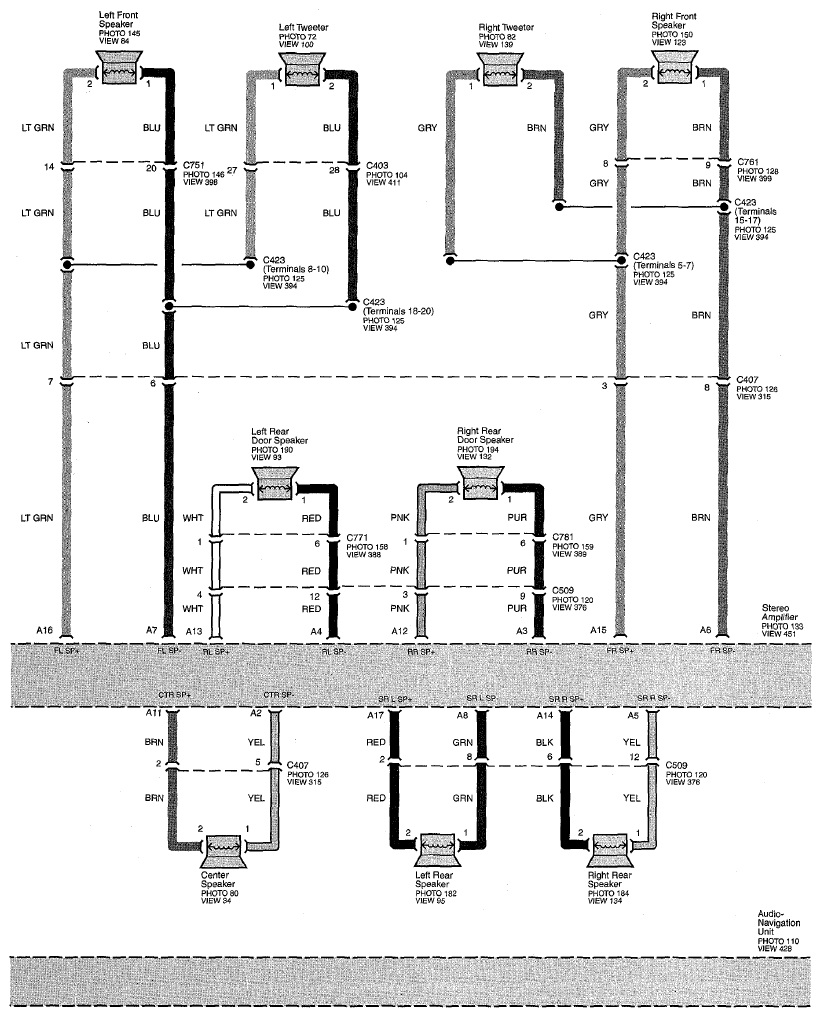

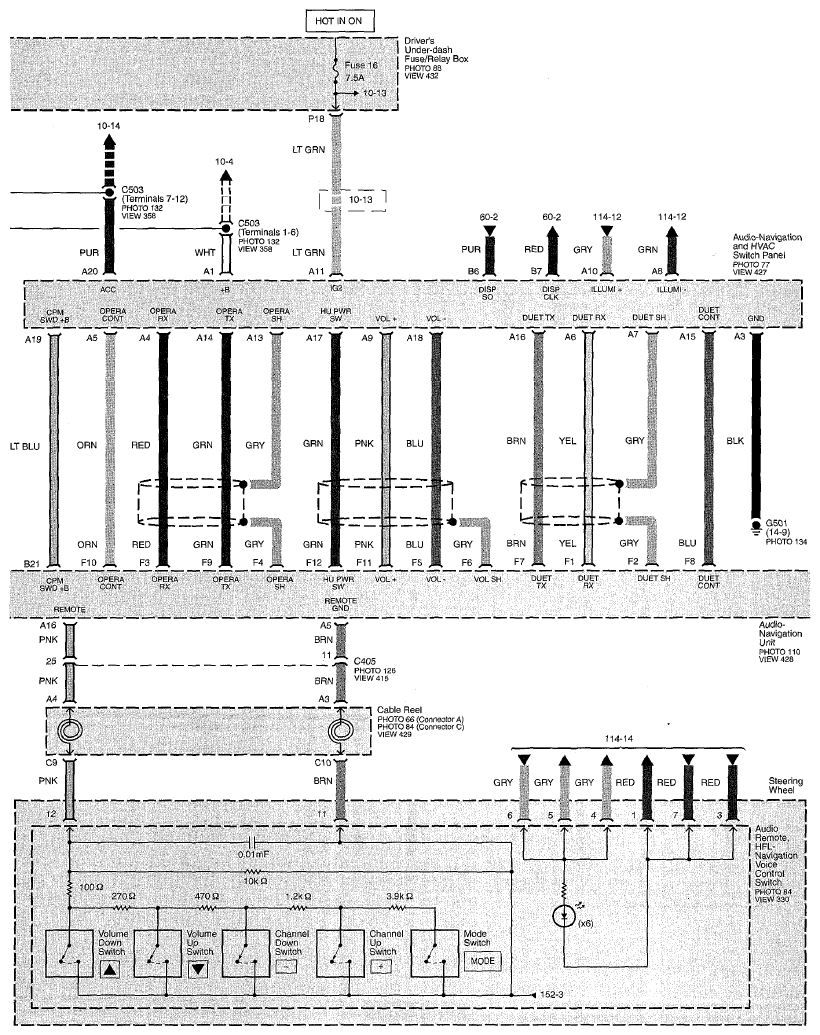

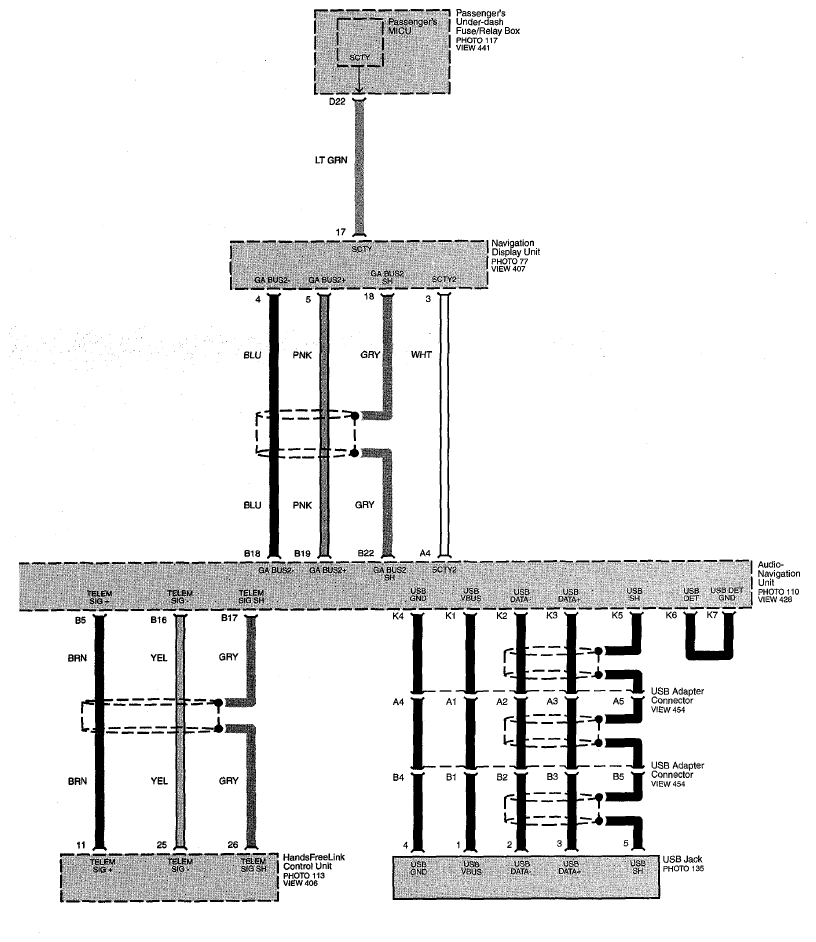

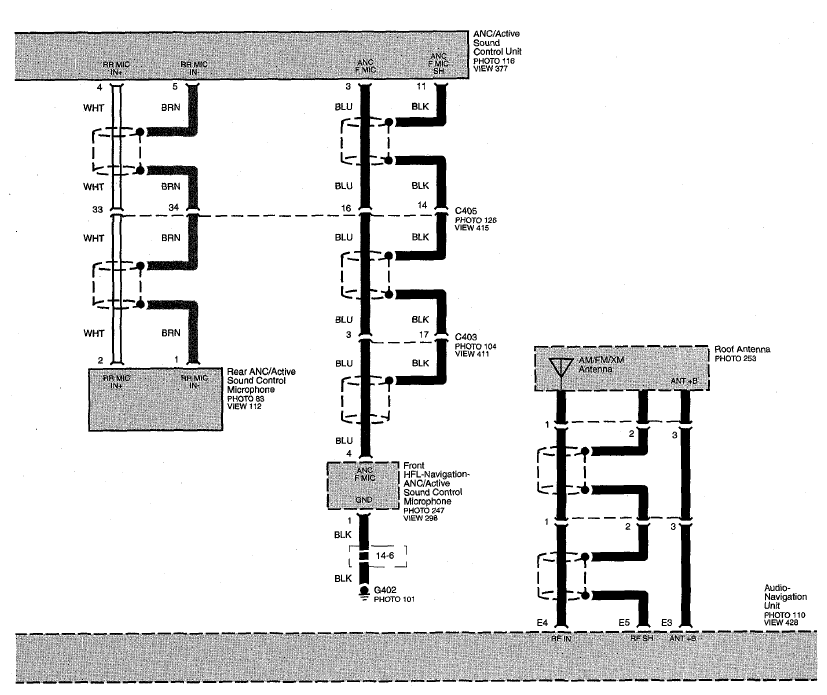

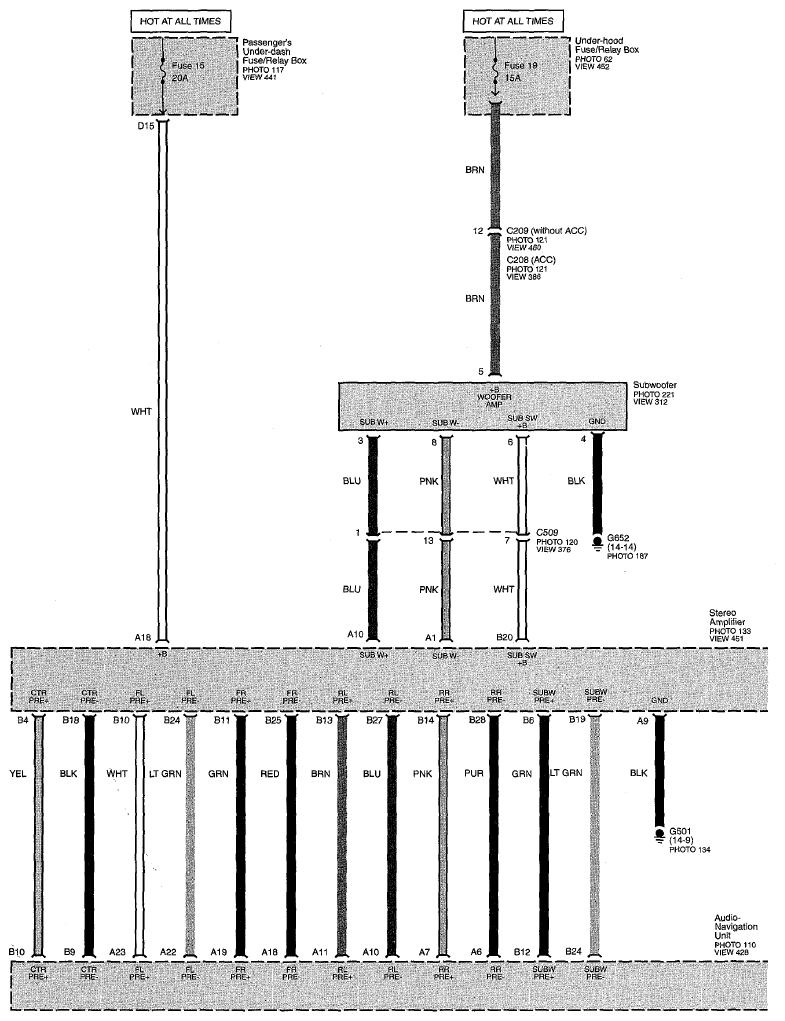

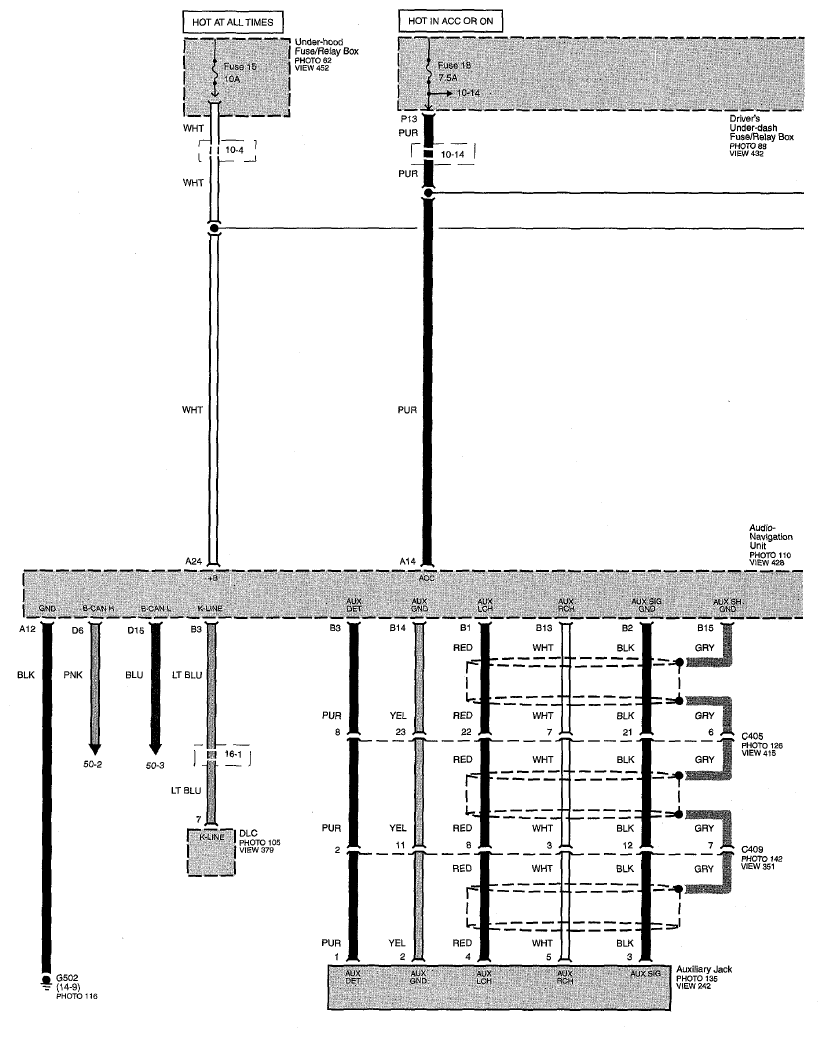

Fig 1: Audio System Circuit Diagram - Navigation (Page 150-10)

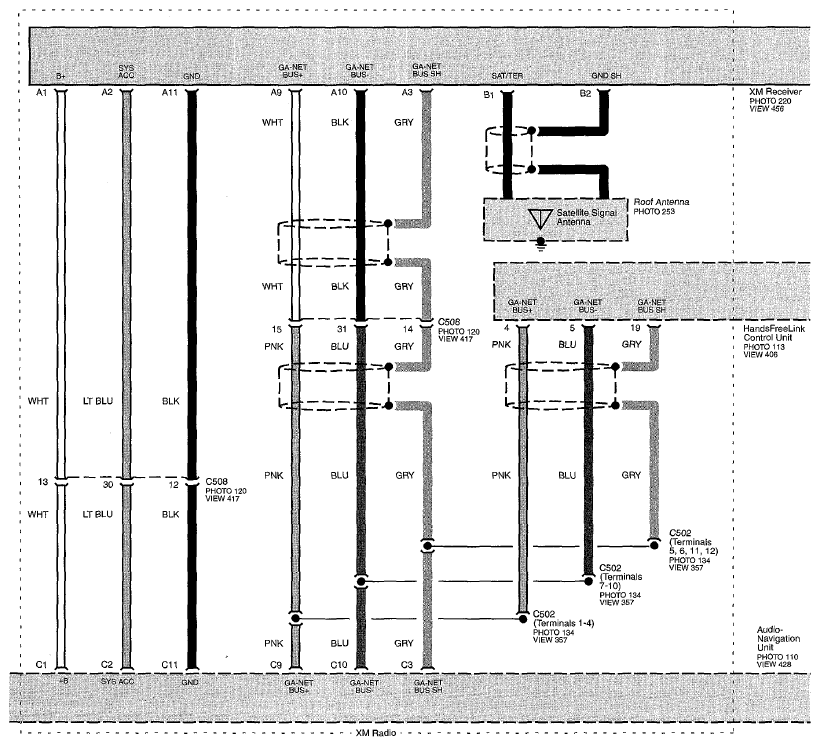

Fig 2: Audio System Circuit Diagram - Navigation (Page 150-11)

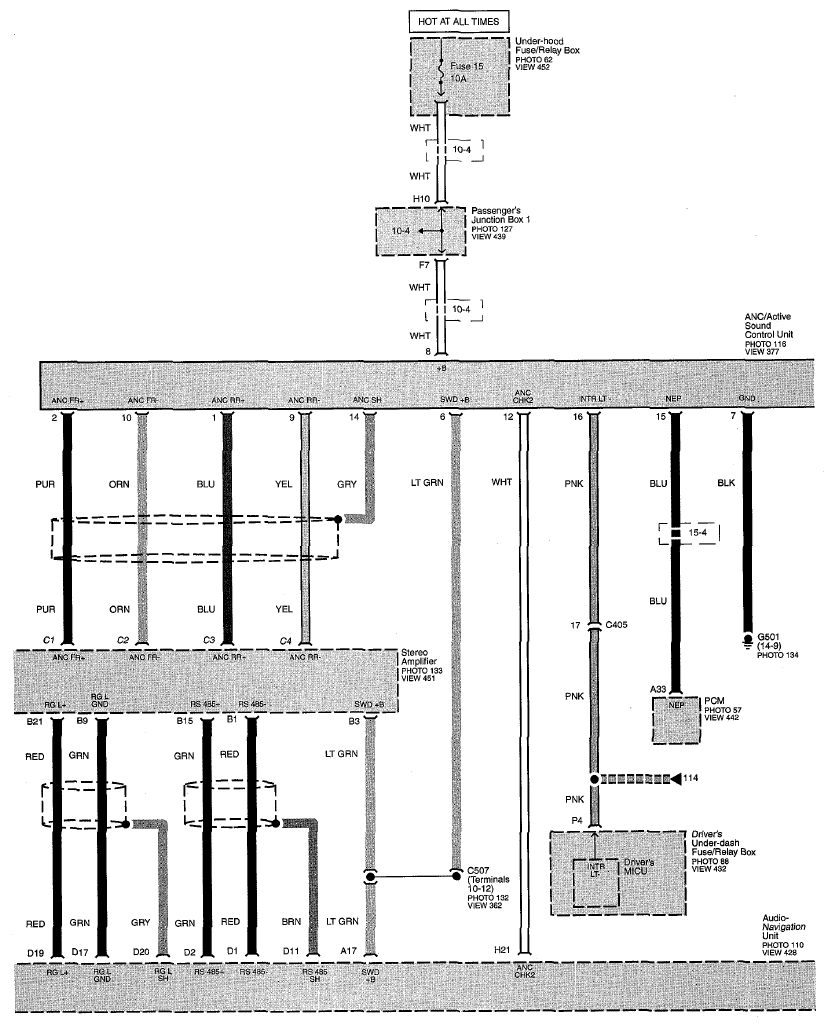

Fig 3: Audio System Circuit Diagram - Navigation (Page 150-12)
Fig 4: Audio System Circuit Diagram - Navigation (Page 150-13)
Fig 5: Audio System Circuit Diagram - Navigation (Page 150-14)
Fig 6: Audio System Circuit Diagram - Navigation (Page 150-15)
Fig 7: Audio System Circuit Diagram - Navigation (Page 150-16)
Fig 8: Audio System Circuit Diagram - Navigation (Page 150-17)
Fig 9: Audio System Circuit Diagram - Navigation (Page 150-18)
Fig 10: Audio System Circuit Diagram - Navigation (Page 150-19)
Fig 11: Audio System Circuit Diagram - Navigation (Page 150-20)
