without Keyless Access

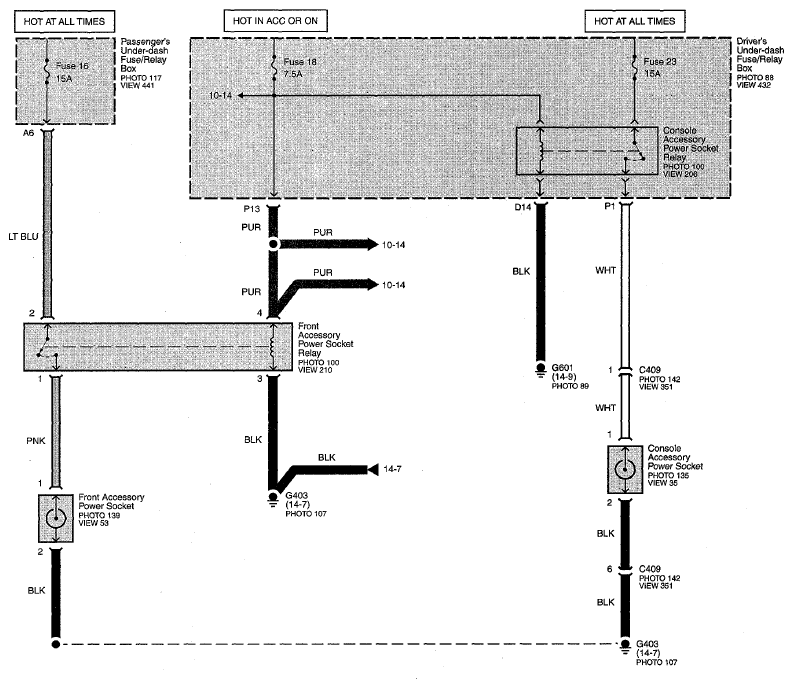

Fig 1: Accessory Power Sockets Circuit Diagram - Without Keyless Access (Page 155)

G07747995
