Keyless Access

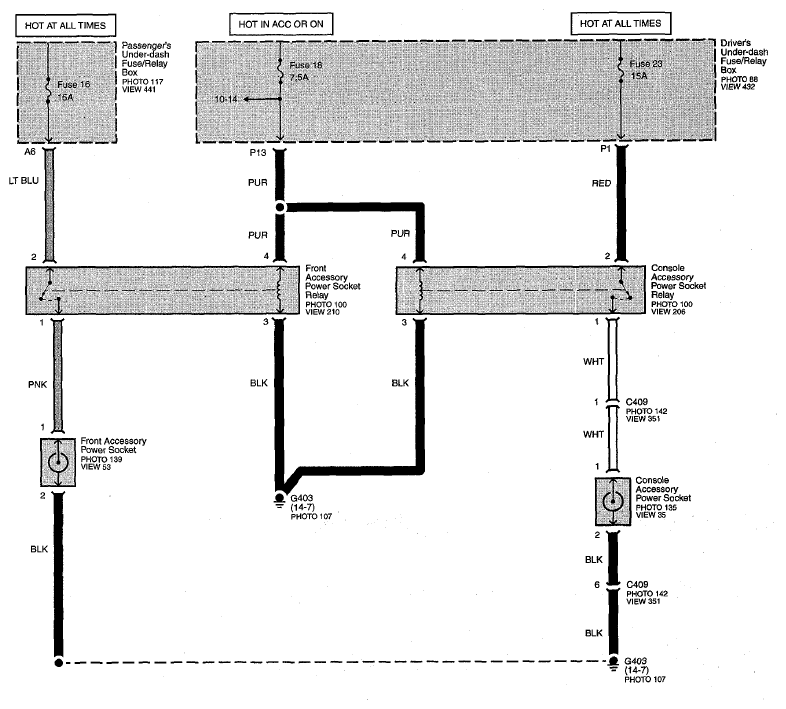

Fig 1: Accessory Power Sockets Circuit Diagram - Keyless Access (Page 155-1)

G07747996
