Accessory Power Sockets
>>
Circuit Diagram
>>
With Keyless Access System
With Keyless Access System

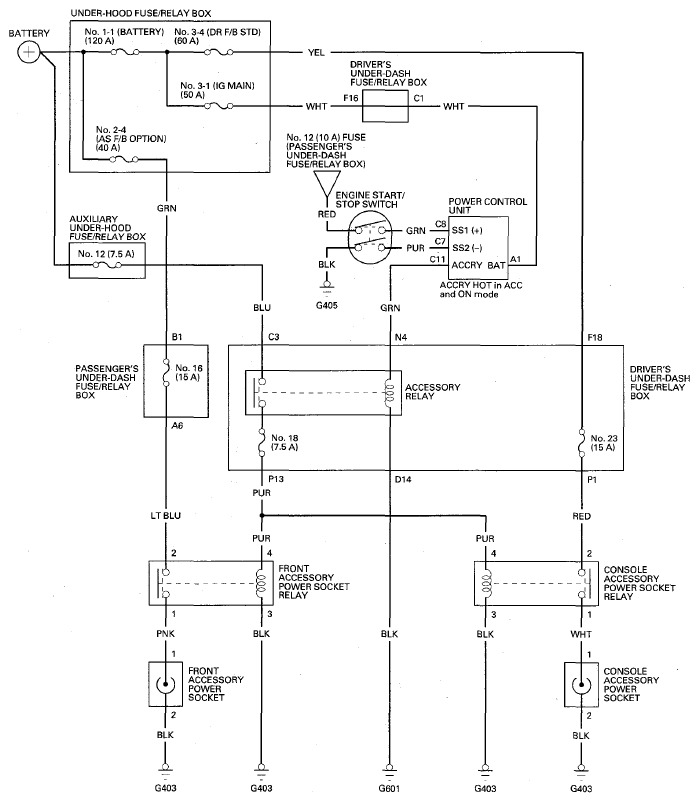

Fig 1: Accessory Power Sockets Circuit Diagram (With Keyless Access System)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
