Component Location Index

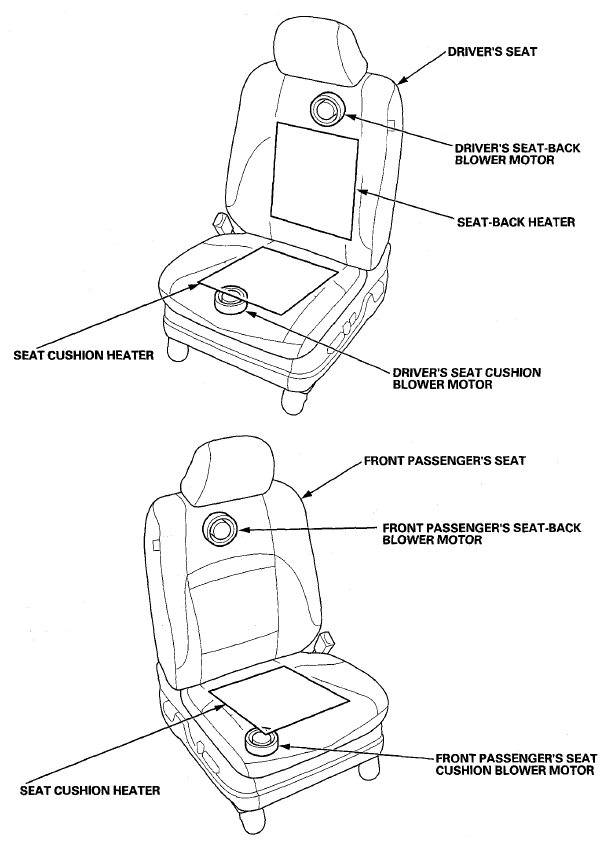

Fig 1: Identifying Ventilation Seats Component Location (1 Of 2)
G08076960Courtesy of AMERICAN HONDA MOTOR CO., INC.

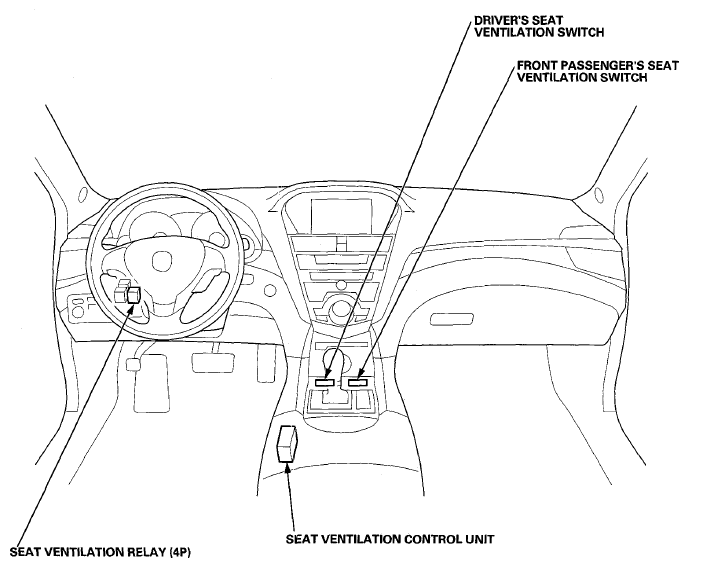

Fig 2: Identifying Ventilation Seats Component Location (2 Of 2)
G08076961Courtesy of AMERICAN HONDA MOTOR CO., INC.
