Rear Subframe Torque

NOTE:
  • Install the rear subframe by aligning the installation positioning holes and positioning holes with the subframe alignment pin.
  • After removing the subframe mounting bolts and the rear subframe stay mounting nuts, be sure to replace them with new ones.

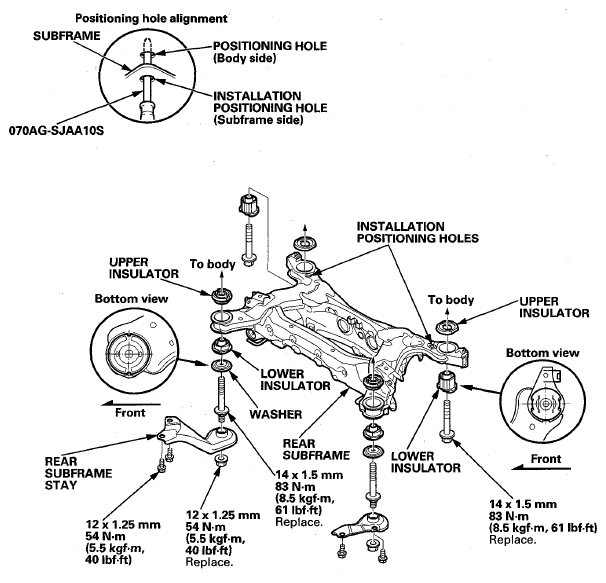

    Fig 1: Rear Subframe Assembly With Torque Specifications
    G08074191Courtesy of AMERICAN HONDA MOTOR CO., INC.
