Roof Console Input Test/Replacement

  1. Turn the map light switch OFF.
  2. Open the sunglass holder, then remove the two screws (A).

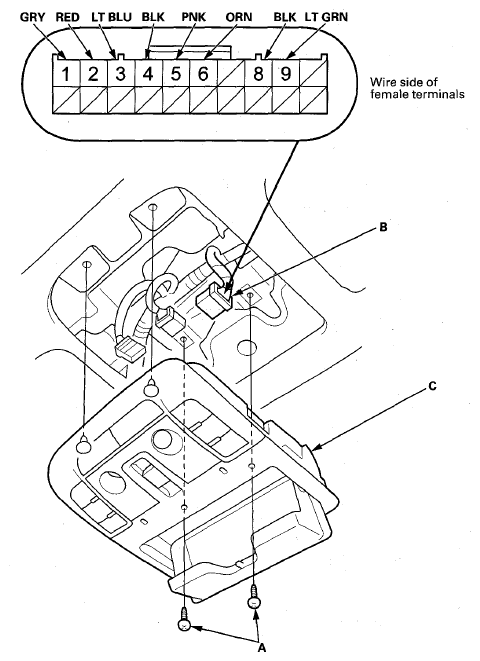

    Fig 1: Identifying Screws, Connector Terminals And Roof Console
    G08076825Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 20P connector (B) from the roof console (C).
  4. Inspect the connector and socket terminals to be sure they are all making good contact.
    • If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
    • If the terminals look OK, go to step 5.
  5. With the connector still disconnected, do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, go to step 6.
    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    5 PNK Disconnect driver's under-dash fuse/relay box connector P (20P) Check for continuity between terminal No. 5 and driver's under-dash fuse/relay box connector P (20P) terminal No. 4: There should be continuity. An open or high resistance in the wire
    6 ORN Disconnect driver's under-dash fuse/relay box connector Q (20P) Check for continuity between terminal No. 6 and driver's under-dash fuse/relay box connector Q (20P) terminal No. 4: There should be continuity. An open or high resistance in the wire
    8 BLK Disconnect the rear individual map light 10P connector Check for continuity between terminal No. 8 and the rear individual map lights 10P connector terminal No. 8: There should be continuity. An open in the wire
    9 LT GRN Disconnect the rear individual map light 10P connector Check for continuity between terminal No. 9 and the rear individual map lights 10P connector terminal No. 9: There should be continuity. An open in the wire
    2 RED Disconnect gauge control module connector A (32P) Check for continuity between terminal No. 2 and gauge control module connector A (32P) terminal No. 21: There should be continuity. An open or high resistance in the wire
  6. Reconnect the connector to the roof console, and do the following input tests:
    • If any test indicates a problem, find and correct the cause, then recheck the system.
    • If all the input tests prove OK, the roof console must be faulty; replace it.
    Cavity Wire Test condition Test: Desired result Possible cause if desired result is not obtained
    3 LT BLU Under all conditions Measure the voltage to ground: There should be battery voltage.
    • Blown No. 16 (7.5 A) fuse in the under-hood fuse/relay box
    • An open or high resistance in the wire
    1 GRY Combination light switch (PARKING LIGHT) ON Measure the voltage to ground: There should be battery voltage.
    • Blown No. 6 (7.5 A) fuse in the passenger's under-dash fuse/relay box
    • An open or high resistance in the wire
    4 BLK In all ignition switch positions or all power modes Measure the voltage to ground: There should be less than 0.2 V.
    • Poor ground (G402)
    • An open or high resistance in the ground wire
