System Description
>>
System Diagram
>>
USA Models
USA Models

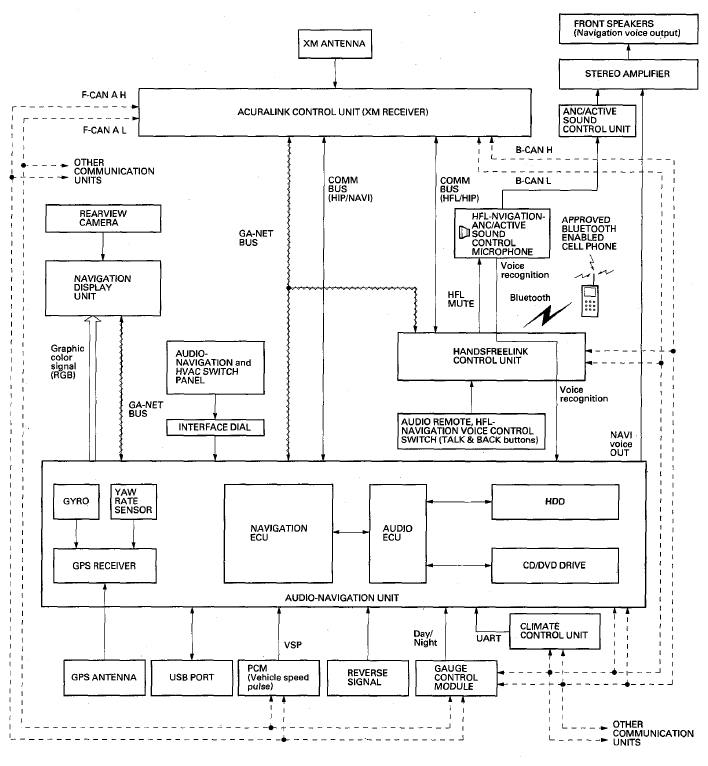

Fig 1: Navigation System Diagram - USA Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
