System Description
>>
System Diagram
>>
Canada Models
Canada Models

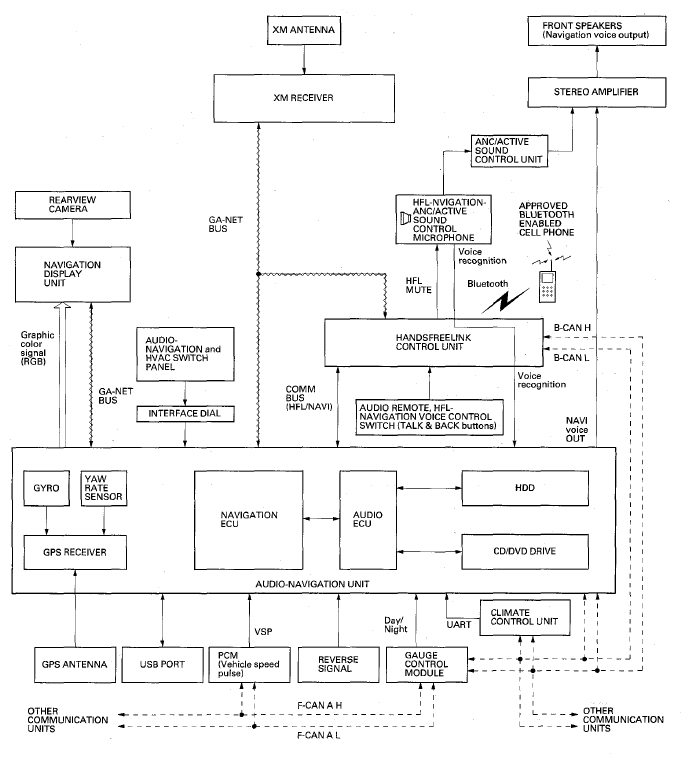

Fig 1: Navigation System Diagram - Canada Models
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
