Circuit Diagram

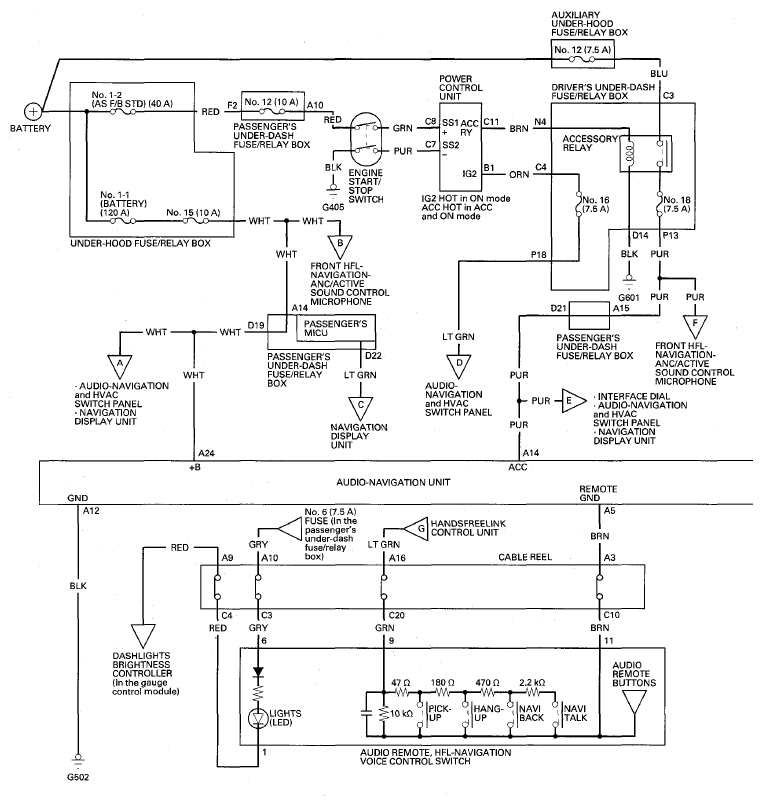

Fig 1: Navigation System Circuit Diagram (1 Of 6)

G08077675

Courtesy of AMERICAN HONDA MOTOR CO., INC.

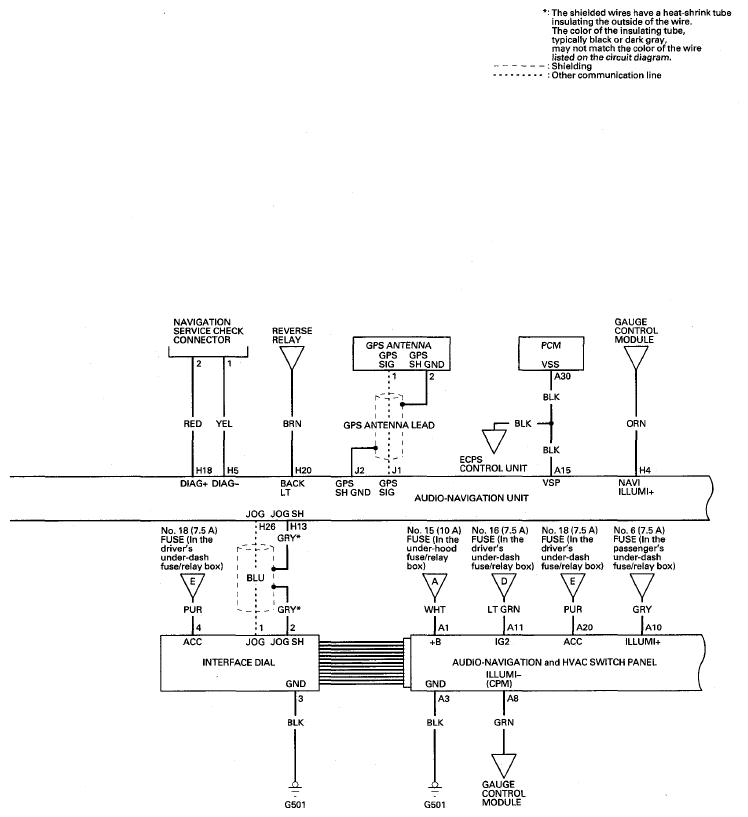

Fig 2: Navigation System Circuit Diagram (2 Of 6)

G08077676

Courtesy of AMERICAN HONDA MOTOR CO., INC.

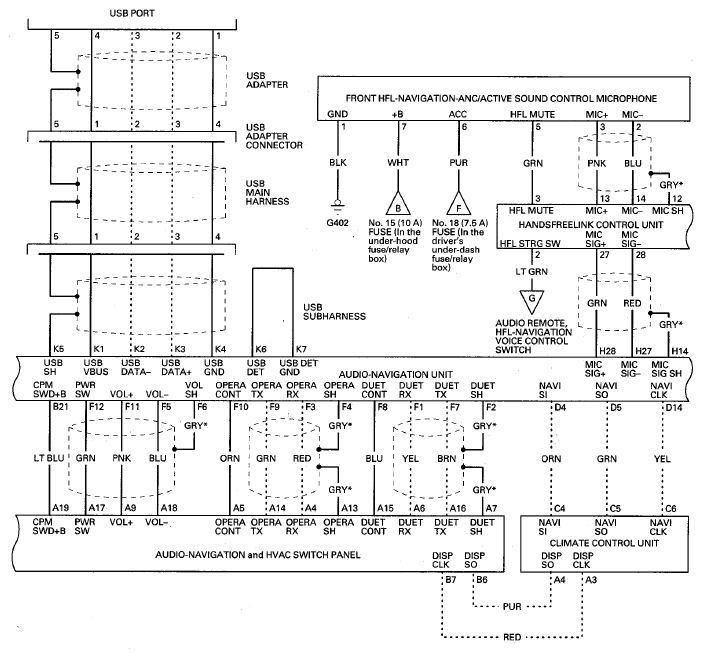

Fig 3: Navigation System Circuit Diagram (3 Of 6)

G08077677

Courtesy of AMERICAN HONDA MOTOR CO., INC.

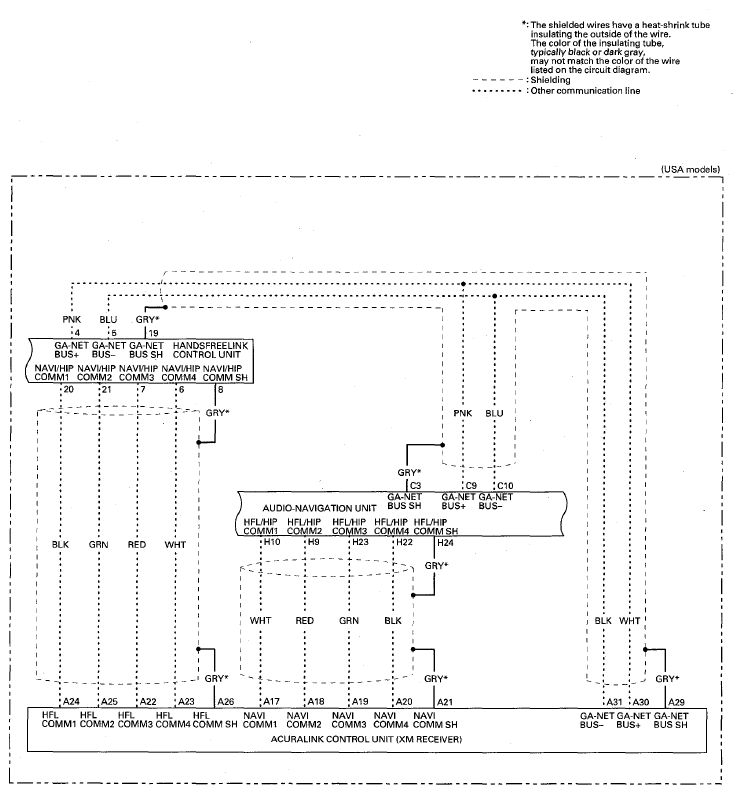

Fig 4: Navigation System Circuit Diagram (4 Of 6)

G08077678

Courtesy of AMERICAN HONDA MOTOR CO., INC.

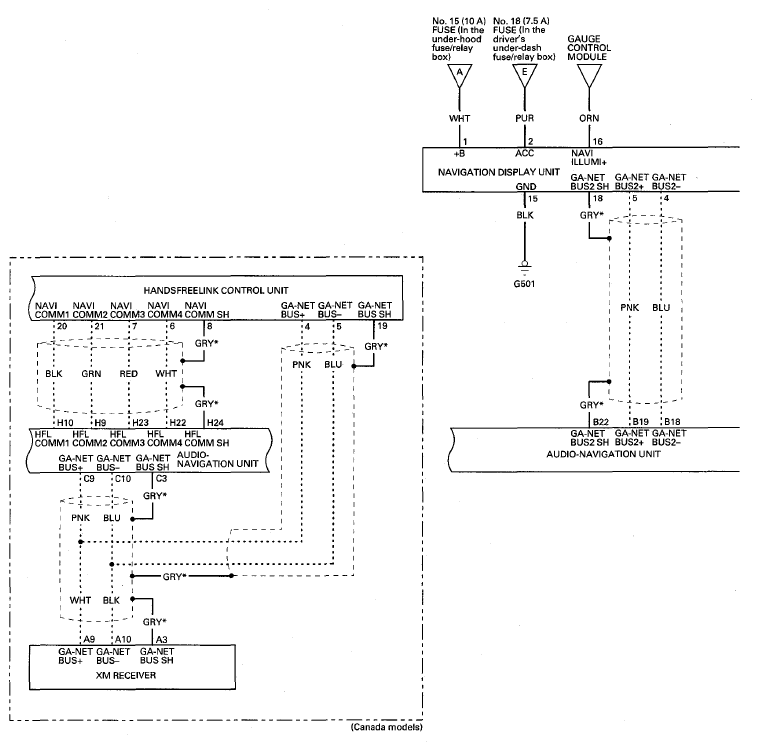

Fig 5: Navigation System Circuit Diagram (5 Of 6)

G08077679

Courtesy of AMERICAN HONDA MOTOR CO., INC.

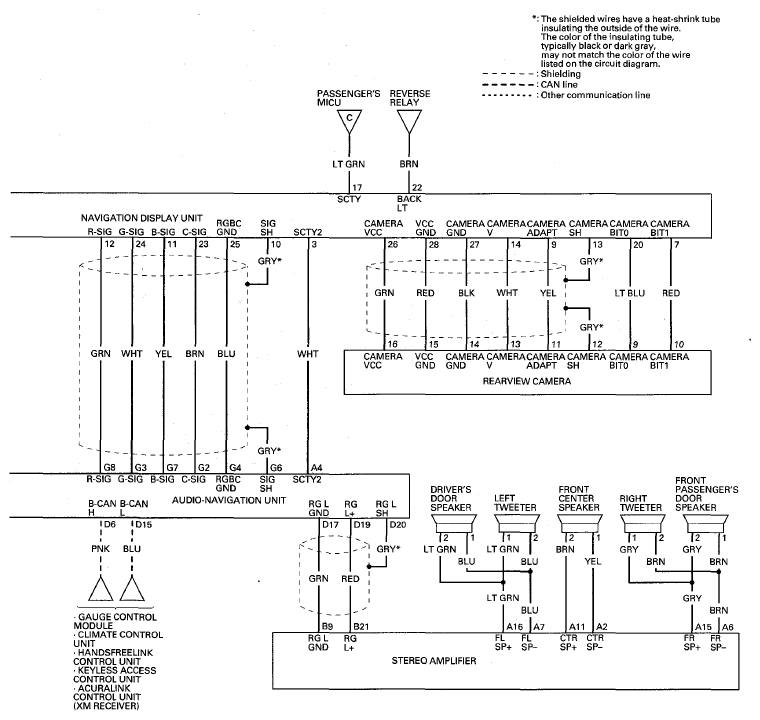

Fig 6: Navigation System Circuit Diagram (6 Of 6)

G08077680

Courtesy of AMERICAN HONDA MOTOR CO., INC.
