Home
>>
Acura
>>
2012
>>
ZDX
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Cruise Control
>>
Circuit Diagram
>>
With Keyless Access System
With Keyless Access System

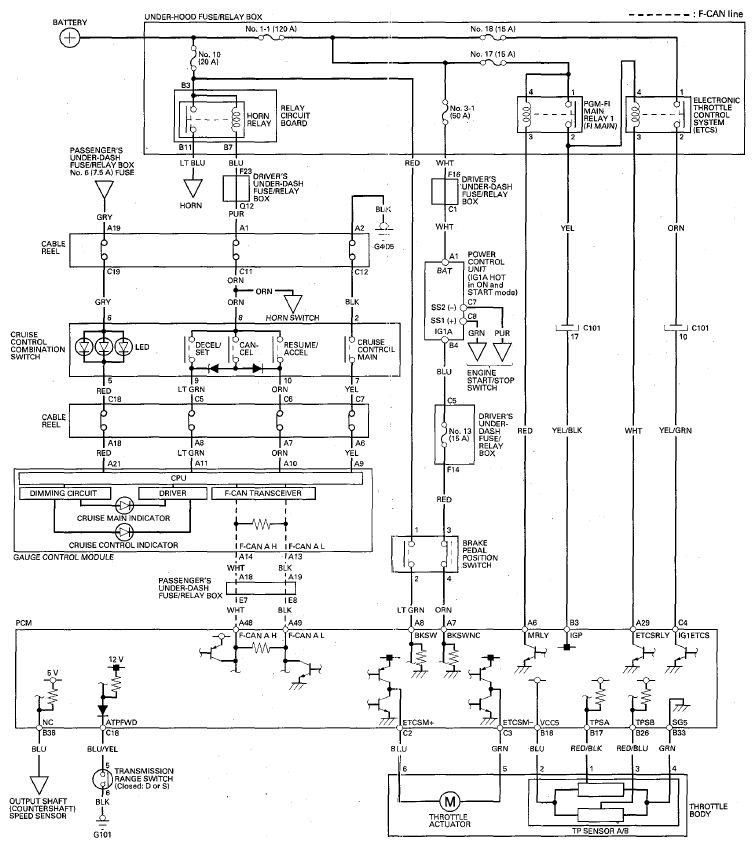

Fig 1: Cruise Control Circuit Diagram - With Keyless Access System
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
