ECPS Control Unit

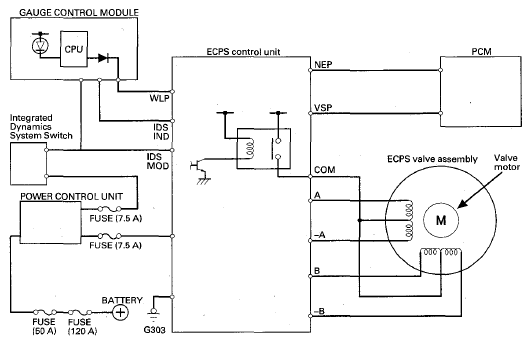

The ECPS control unit drives the valve motor built inside the ECPS valve assembly depending on the engine speed signal, the vehicle speed signal from the PCM active damper system indicator from the gauge control module, and integrated dynamics system switch position. When a failure occurs, this unit stores a DTC and sends a signal to the gauge control module to turn on the ECPS indicator.
