Audio-Navigation and HVAC Switch Panel (With Navigation) Connector End View
Audio-Navigation and HVAC Switch Panel (With Navigation) Connector End View

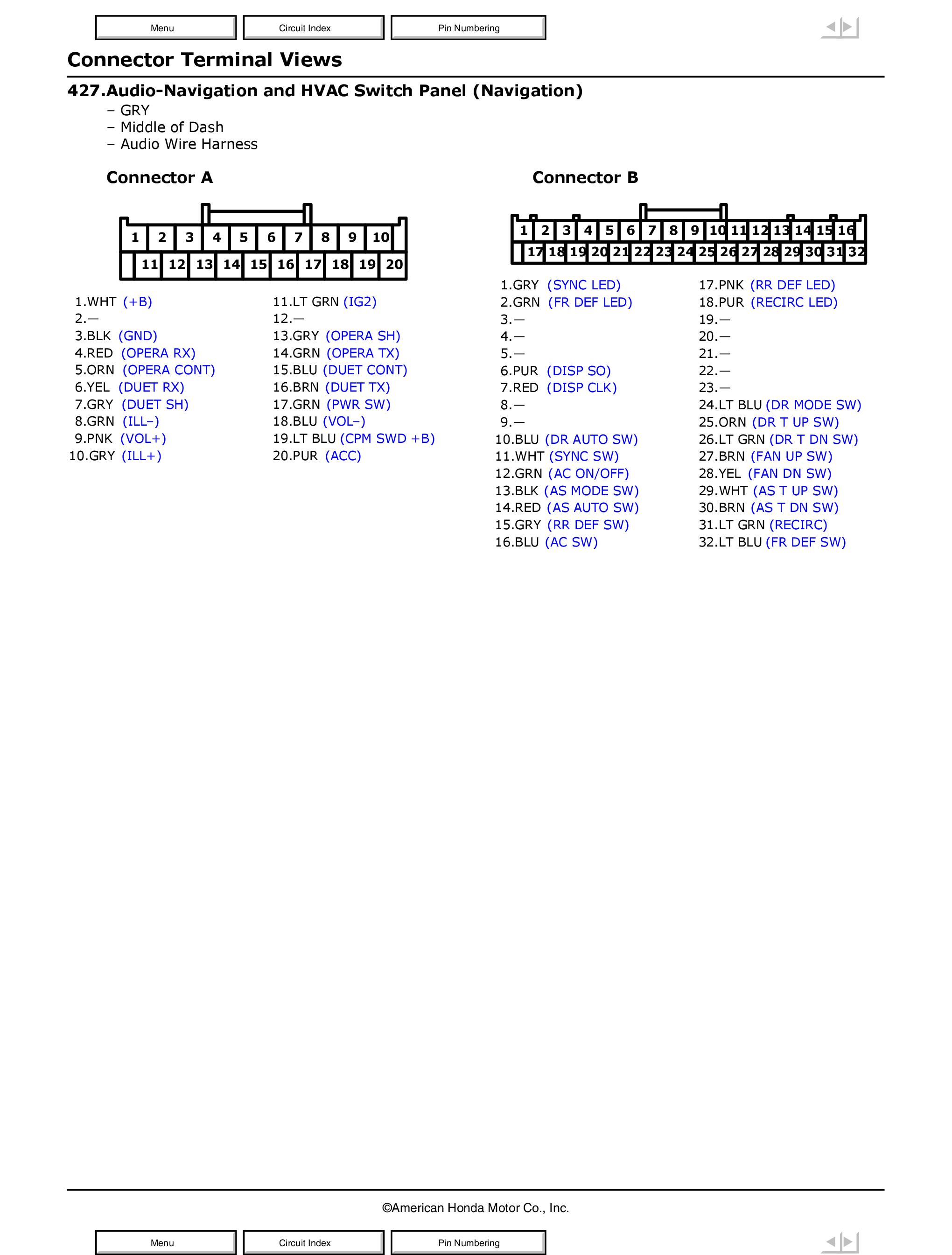

Fig 1: Audio-Navigation and HVAC Switch Panel (With Navigation) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
