Audio-Navigation Unit (AcuraLink) Connector End View
Audio-Navigation Unit (AcuraLink) Connector End View

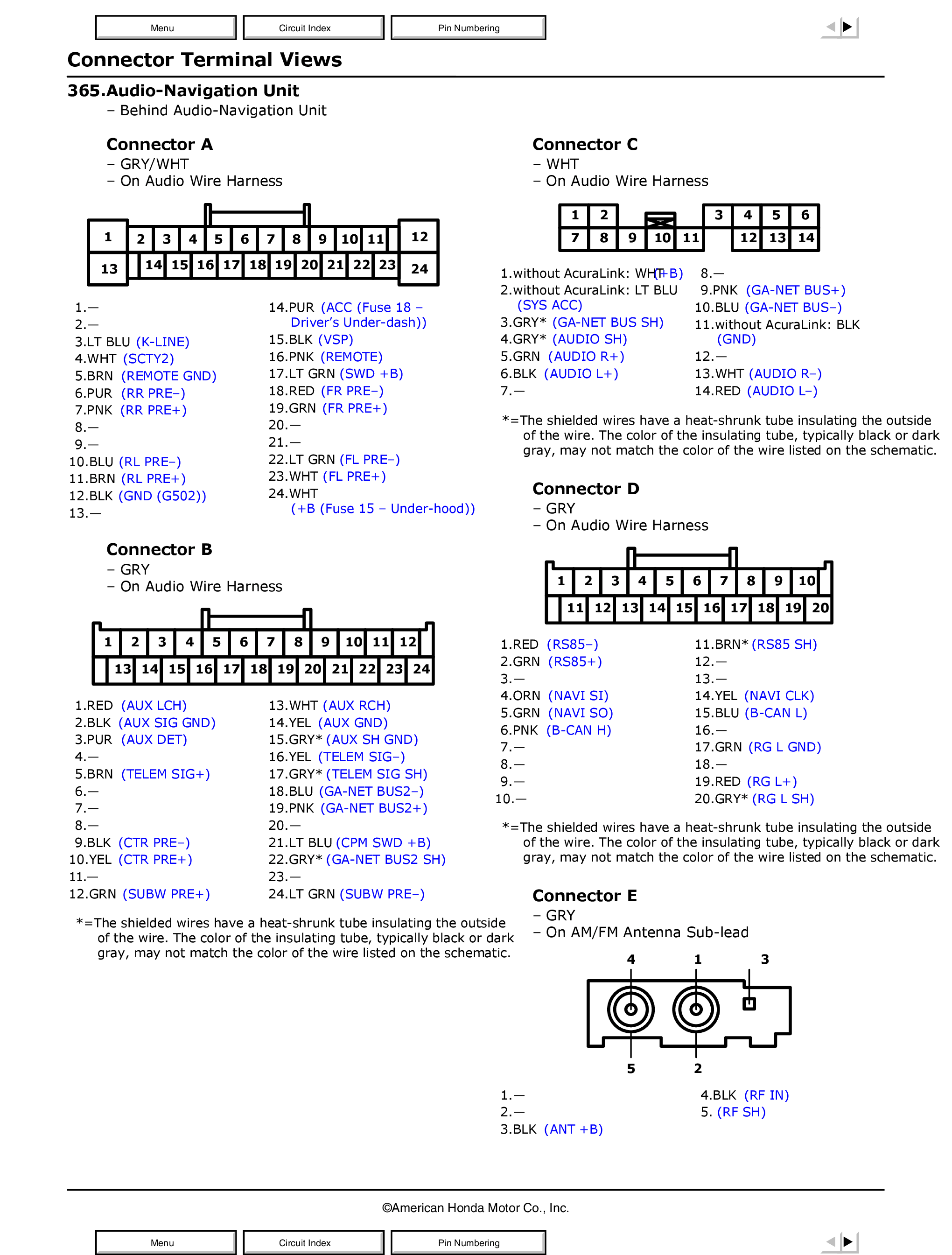

Fig 1: Audio-Navigation Unit (AcuraLink) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
