Audio Unit (Without Navigation System) Connector End View
Audio Unit (Without Navigation System) Connector End View

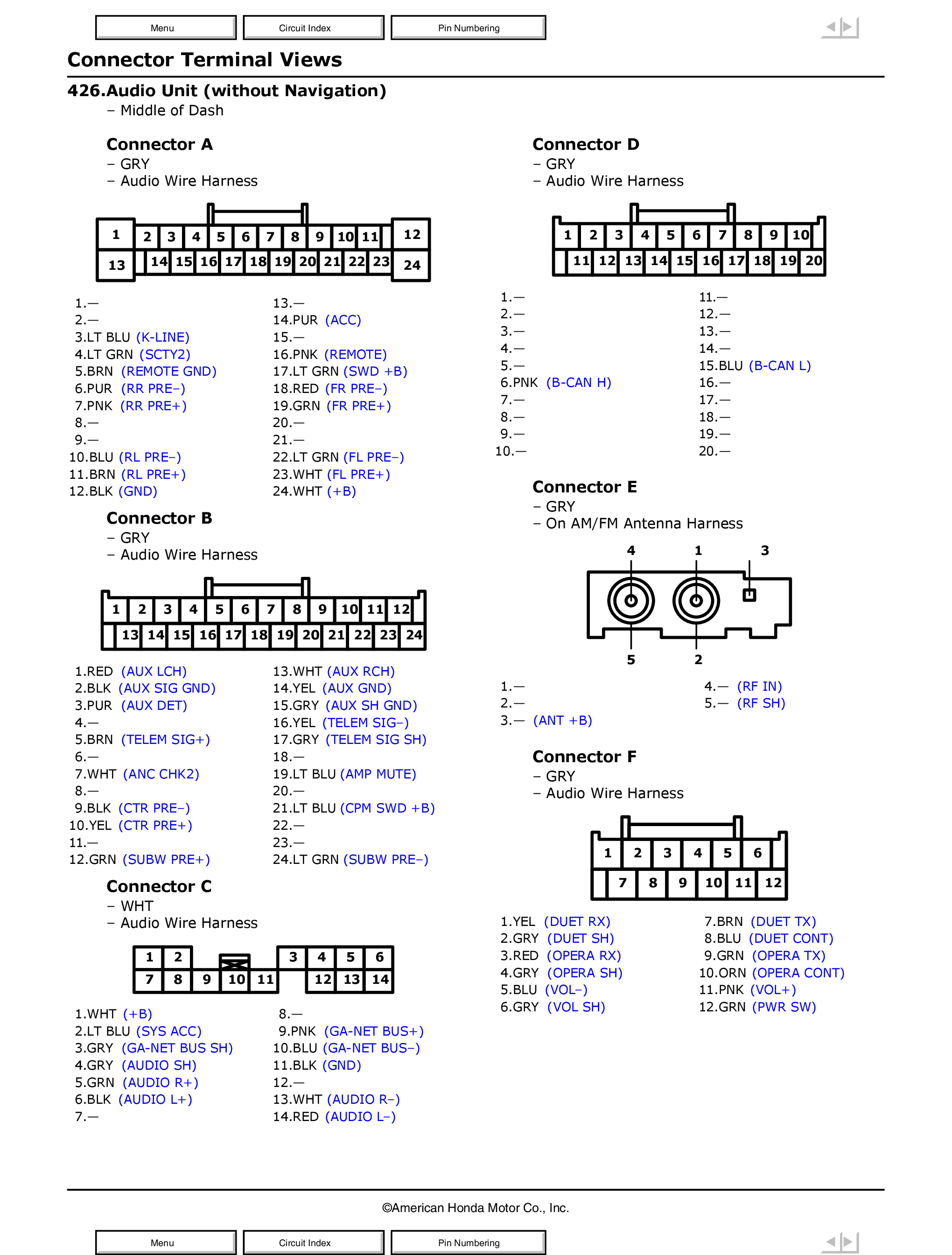

Fig 1: Audio Unit (Without Navigation System) Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
