ANC/Active Sound Control Unit Connector End View
ANC/Active Sound Control Unit Connector End View

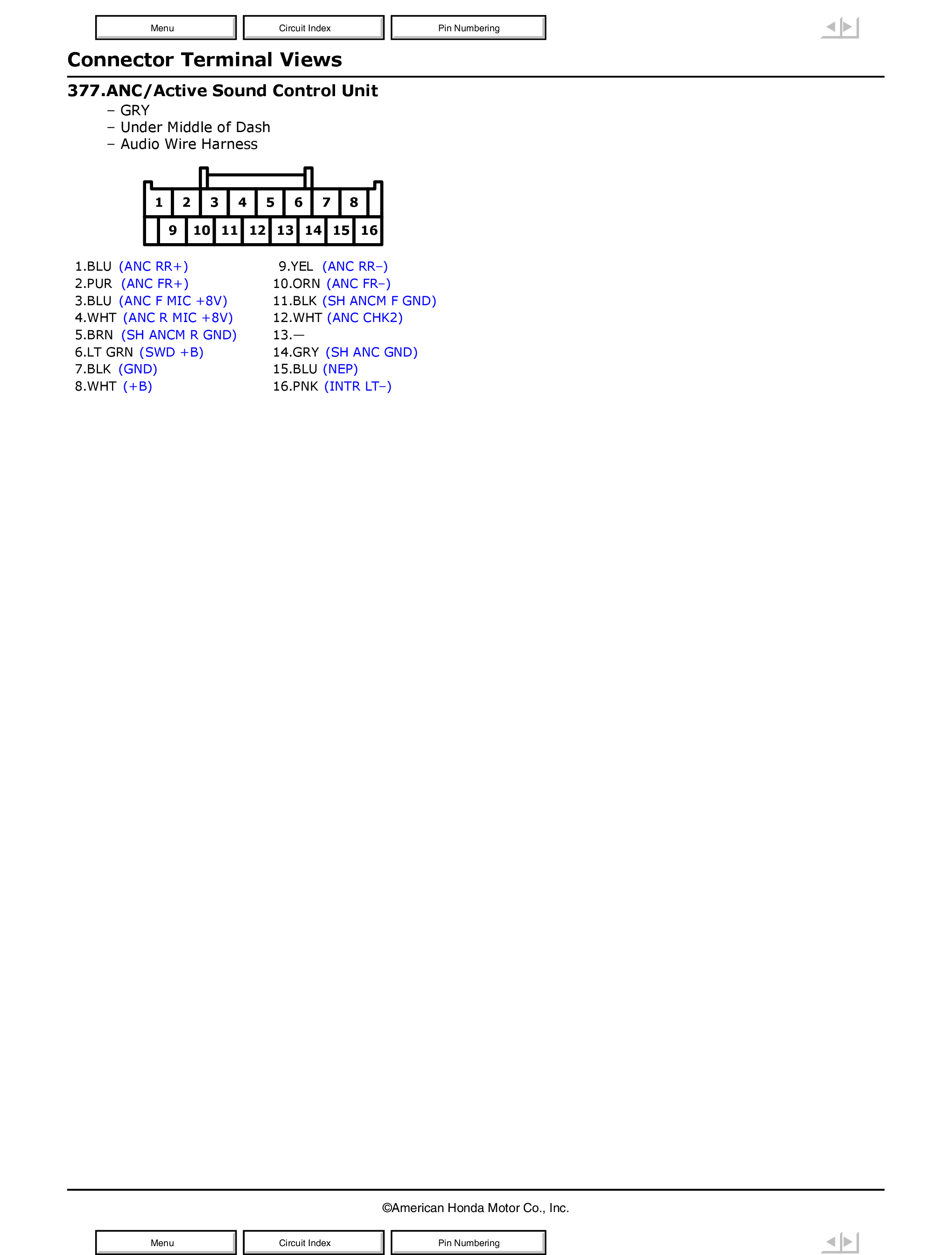

Fig 1: ANC/Active Sound Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.

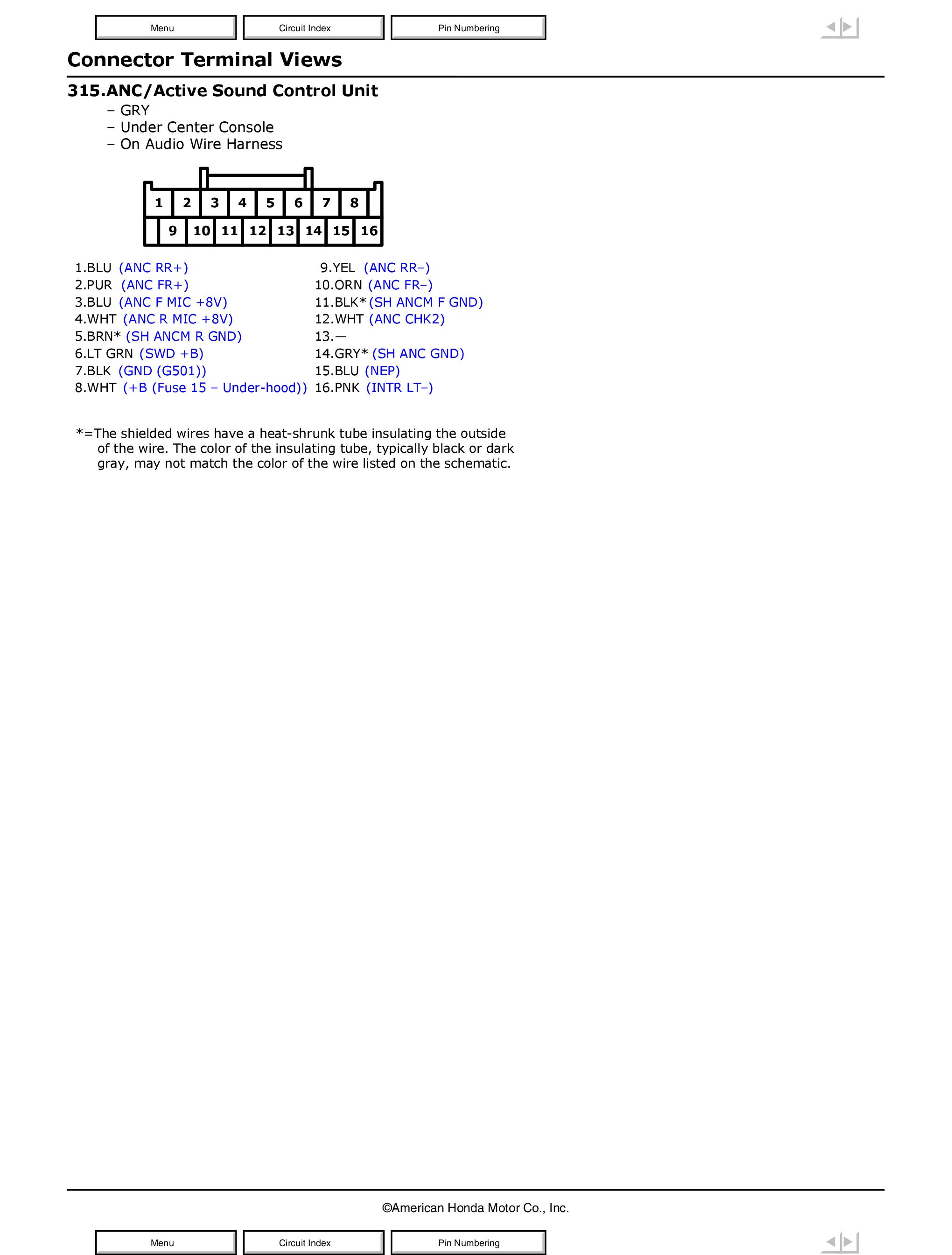

Fig 1: ANC/Active Sound Control Unit Connector End View
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
