Sub Display

This diagnosis checks the connection between the audio-navigation and HVAC switch panel and the audio-navigation unit. If Connection shows NG, check for hard error codes (see HOW TO CHECK ERROR HISTORY (NAVIGATION DTCS)  ).

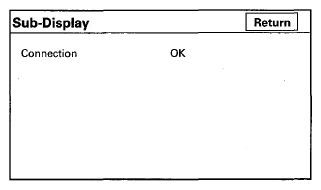

Fig 1: Screen Display - Sub Display Connection

Courtesy of AMERICAN HONDA MOTOR CO., INC.
